ZTE DSL Cable Pinout

ZTE Aug 1, 2025

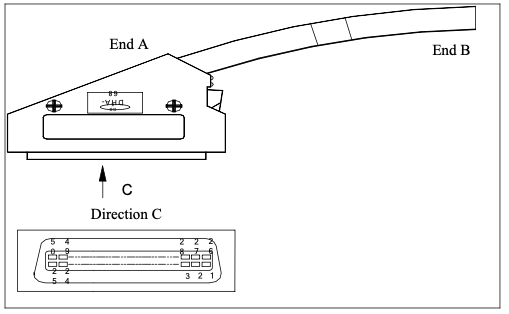

ZTE DSL Cable
ZTE DSL Cable

ADSL Subscriber Cable

User Channel Color Coding End A Pins
1 White, Blue 18, 17
2 White, Orange 43, 42
3 White, Green 20, 19
4 White, Brown 45, 44
5 Red, Blue 22, 21
6 Red, Orange 47, 46
7 Red, Green 24, 23
8 Red, Brown 49, 48
9 Black, Blue 2, 1
10 Black, Orange 27, 26
11 Black, Green 4, 3
12 Black, Brown 29, 28
13 Yellow, Blue 6, 5
14 Yellow, Orange 31, 30
15 Yellow, Green 8, 7
16 Yellow, Brown 33, 32
17 White/Blue, Blue 10, 9
18 White/Blue, Orange 35, 34
19 White/Blue, Green 12, 11
20 White/Blue, Brown 37, 36
21 Red/Blue, Blue 14, 13
22 Red/Blue, Orange 39, 38
23 Red/Blue, Green 16, 15
24 Red/Blue, Brown 41, 40

VDSL Subscriber Cable

User Channel Color Coding End A Pins
1 White, Blue 18, 17
2 White, Orange 43, 42
3 White, Green 20, 19
4 White, Brown 45, 44
5 Red, Blue 22, 21
6 Red, Orange 47, 46
7 Red, Green 24, 23
8 Red, Brown 49, 48
9 Black, Blue 2, 1
10 Black, Orange 27, 26
11 Black, Green 4, 3
12 Black, Brown 29, 28
13 Yellow, Blue 6, 5
14 Yellow, Orange 31, 30
15 Yellow, Green 8, 7
16 Yellow, Brown 33, 32
