UniFi Gateway GeoIP

General Country Restriction

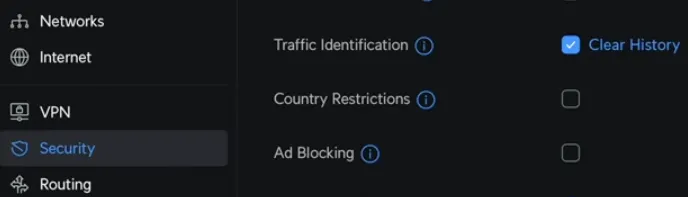

Older versions: Security > Country Restriction

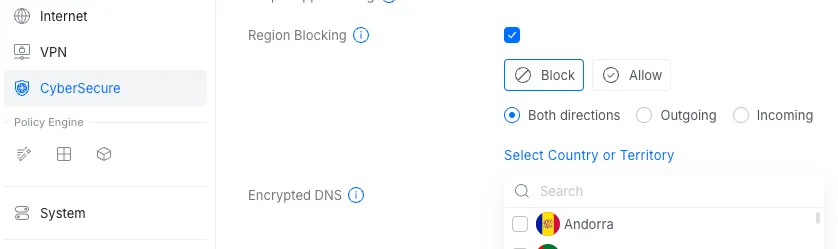

Newer versions: CyberSecure > Region Blocking

The geo map shows traffic by region.

DPI is not required for GeoIP to function, but clearing the DPI history will also clear GeoIP history.

UniFI Gateway uses a binary (.mmdb) format optimised for fast lookups at scale, and is provided by MaxMind.

/usr/share/dpi/geoip/GeoLite2-Country.mmdb

The database contains IPv4 or IPv6 network blocks in CIDR format, along with a unique identifier for the network's location, as specified by GeoNames.

In/Out Geo IP polices are created. They allow private IP ranges, IP addresses of configured UniFI networks, the WAN IP of the Gateway, and established connections. Then use the geoip module to drop matched traffic.

These polices do not apply to locally generated packets from the gateway.

iptables -t filter -v -L -n

Chain UBIOS_OUT_GEOIP (1 references)
 pkts bytes target     prot opt in     out     source               destination
    0     0 RETURN     all  --  *      *       0.0.0.0/0            0.0.0.0
    0     0 RETURN     all  --  *      *       0.0.0.0/0            255.255.255.255
    0     0 RETURN     all  --  *      *       0.0.0.0/0            10.0.0.0/8
    0     0 RETURN     all  --  *      *       0.0.0.0/0            172.16.0.0/12
    0     0 RETURN     all  --  *      *       0.0.0.0/0            192.168.0.0/16
    0     0 RETURN     all  --  *      *       0.0.0.0/0            100.64.0.0/10
    0     0 RETURN     all  --  *      *       0.0.0.0/0            169.254.0.0/16
    0     0 RETURN     all  --  *      *       0.0.0.0/0            10.6.0.0/24
    0     0 RETURN     all  --  *      *       0.0.0.0/0            127.0.0.0/8
    0     0 RETURN     all  --  *      *       0.0.0.0/0            195.1.1.1
  711  217K RETURN     all  --  *      *       0.0.0.0/0            0.0.0.0/0            state RELATED,ESTABLISHED
    0     0 DROP       all  --  *      *       0.0.0.0/0            0.0.0.0/0            -m geoip --destination-country AF
   87 24641 RETURN     all  --  *      *       0.0.0.0/0            0.0.0.0/0

You can also create county-related firewall rules, these just add the block rule and does not allow established connections.
