WCCPv2 - Web Cache Communication Protocol

WCCP Service Groups:

• 0: Webcache (port 80)
• 61-62: WAAS
• 70: HTTPS cache (port 443)
• 90-97: User Defined
• 99: Reverse Proxy

IOS Router Configuration

ip wccp web-cache

int gi 0/1
  ip wccp web-cache redirect in

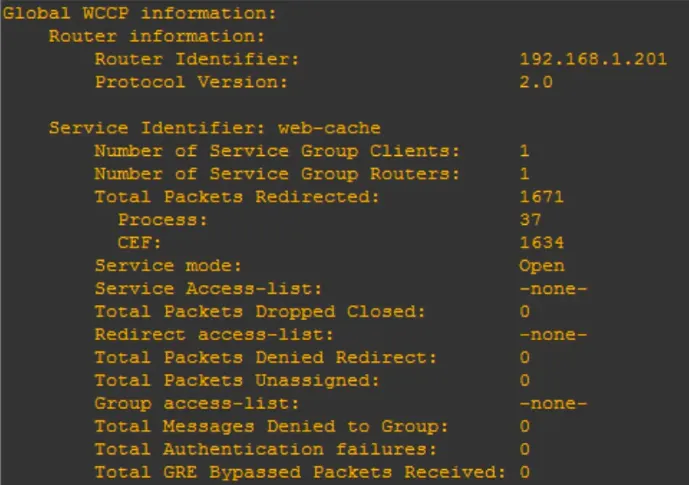

show ip wccp

ASA Firewall Configuration

Device Setup > Interface Settings > Interfaces

Permit intra-interface traffic

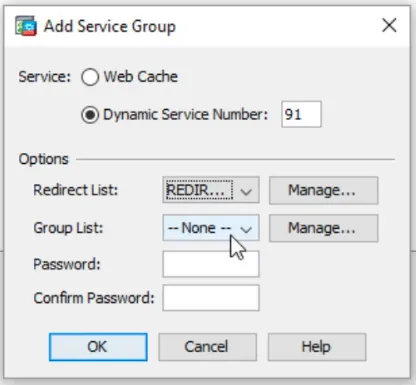

Device Management > Advanced > WCCP > Service Groups

Create an ACL to match the web traffic.

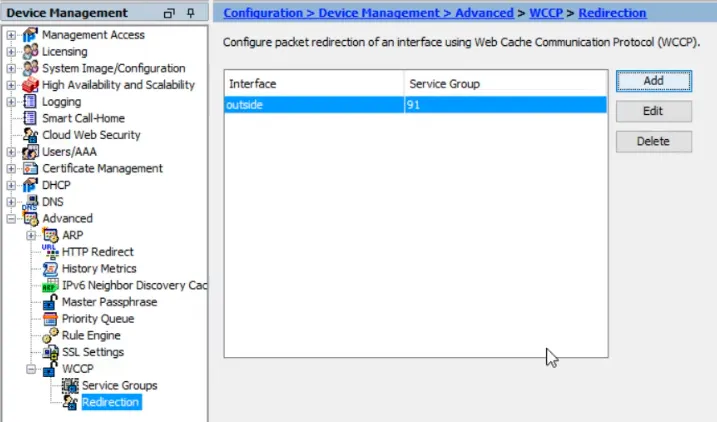

Device Management > Advanced > WCCP > Redirection

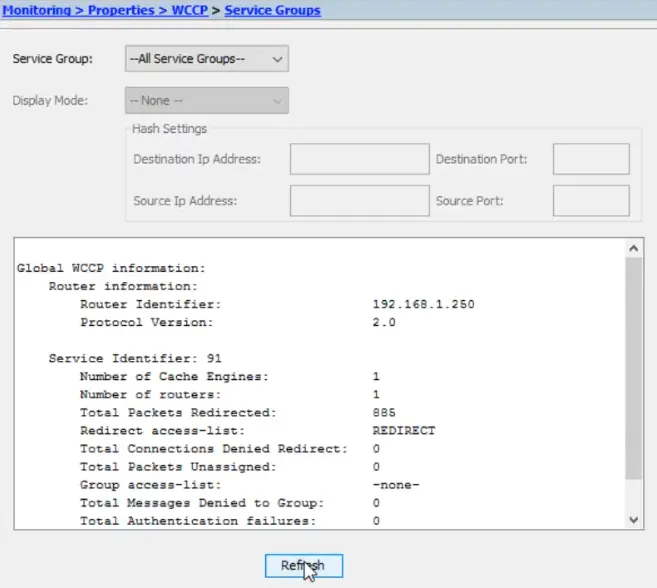

Monitoring > Properties > WCCP > Service Groups
