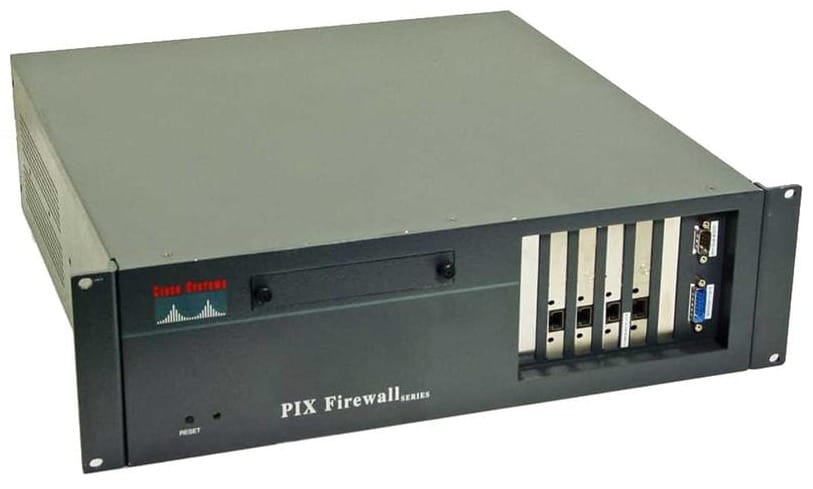

PIX - Translations and Connections

Adaptive Security Algorithm (ASA)

• ASA is a stateful secure connection via the PIX firewall
• Every packet is tested by ASA and the state info in PIX memory
• Allows one-way outbound connections with minimal configurations
• Monitors the validity of return traffic
• Randomizes the first TCP sequence number

Security levels range from 0-100, highest level is the most trusted.

Traffic can only go to a lower level unless permitted by an ACL. Traffic does not flow between two interfaces that have the same level.

Create a DMZ interface and a default route.

nameif ethernet DMZ sec50
ip address DMZ 172.16.0.1 255.255.255.0

route outside 0.0.0.0 0.0.0.0 192.168.0.1 1

NAT

NAT translates inside local IP addresses to outside global IP addresses.

• Helps with the public IP address shortage
• Hide internal address schemes and enhance security
• PIX supports dynamic and static translations

Dynamic translations

NAT any host on the internal interface, NAT and Global IDs need to match.

nat (inside) 1 0.0.0.0 0.0.0.0

global (outside) 1 192.168.0.20-192.168.0.254 netmask 255.255.255.0

clear xlate

show nat

show global

show xlate

show conn

Multiple networks on the same interface

nat (inside) 1 10.0.0.0 255.255.255.0
nat (inside) 2 10.2.0.0 255.255.255.0
global (outside) 1 192.168.0.3-192.168.0.14 netmask 255.255.255.0
global (outside) 2 192.168.0.17-192.168.0.30 netmask 255.255.255.0

Multiple interfaces

nat (inside) 1 10.0.0.0 255.255.255.0
nat (DMZ) 1 172.16.0.0 255.255.255.0
global (outside) 1 192.168.0.20-192.168.0.254 netmask 255.255.255.0
global (DMZ) 1 172.16.0.20-192.168.0.254 netmask 255.255.255.0

PAT

• PAT Address = IP Address + Source Port Number
• Multiplexes many addresses to a single IP address
• Sessions are distinct by port numbers
• 1 outside IP address can practically represent approx 4000 inside host addresses
• PAT can map TCP and UDP ports
• PAT can be implemented with NAT
• Avoid PAT with multimedia applications

ip address inside 10.0.0.1 255.255.255.0
ip address outside 192.168.0.2 255.255.255.0

nat (inside) 1 10.0.0.0 255.255.0.0
global (outside) 1 192.168.0.9 netmask 255.255.255.255

Use the DHCP address of the outside interface

ip address outside dhcp

nat (inside) 1 10.0.0.0 255.255.0.0
global (outside) 1 interface

Map PAT addresses to different subnets

nat (inside) 1 10.0.1.0 255.255.255.0
nat (inside) 2 10.0.2.0 255.255.255.0

global (outside) 1 192.168.0.9 netmask 255.255.255.255
global (outside) 2 192.168.0.8 netmask 255.255.255.255

Add extra PAT addresses when the first one is at capacity

nat (inside) 1 10.0.0.0 255.255.0.0

global (outside) 1 192.168.0.9 netmask 255.255.255.0
global (outside) 1 192.168.0.8 netmask 255.255.255.0

Use PAT when NAT addresses are used up

nat (inside) 1 10.0.0.0 255.255.0.0

global (outside) 1 192.168.0.20-192.168.0.253 netmask 255.255.255.0
global (outside) 1 192.168.0.254 netmask 255.255.255.0

Identity NAT

Isolate a host so that it does not use NAT translations. Use NAT ID of zero.

nat (DMZ) 0 192.168.0.19 255.255.255.255

Policy NAT

• Local traffic is identified for address translation by using access control lists
• The ACL can be applied to the NAT command or the STATIC command
• Administrator can designate the source address, the destination address, and ports

access-list 101 permit tcp 10.0.0.0 255.255.255.0 host 192.168.100.11 eq 23
access-list 102 permit tcp 10.0.0.0 255.255.255.0 host 192.168.100.44 eq 80

nat (inside) 3 access-list 101
global (outside) 3 192.168.0.9 255.255.255.255

nat (inside) 4 access-list 102
global (outside) 4 192.168.0.21 255.255.255.255
