ISE - Identity Services Engine

802.1x

Authenticator - Switch or Access Point

Authentication Server - ISE or ACS

Supplicant - built-in or installed software on the client to supply details to the Authenticator

ISE 3.x requires a 300 GB drive for installation.

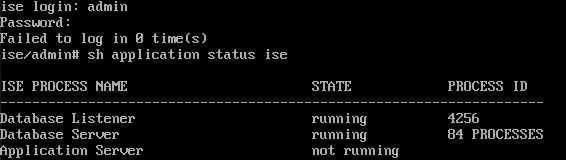

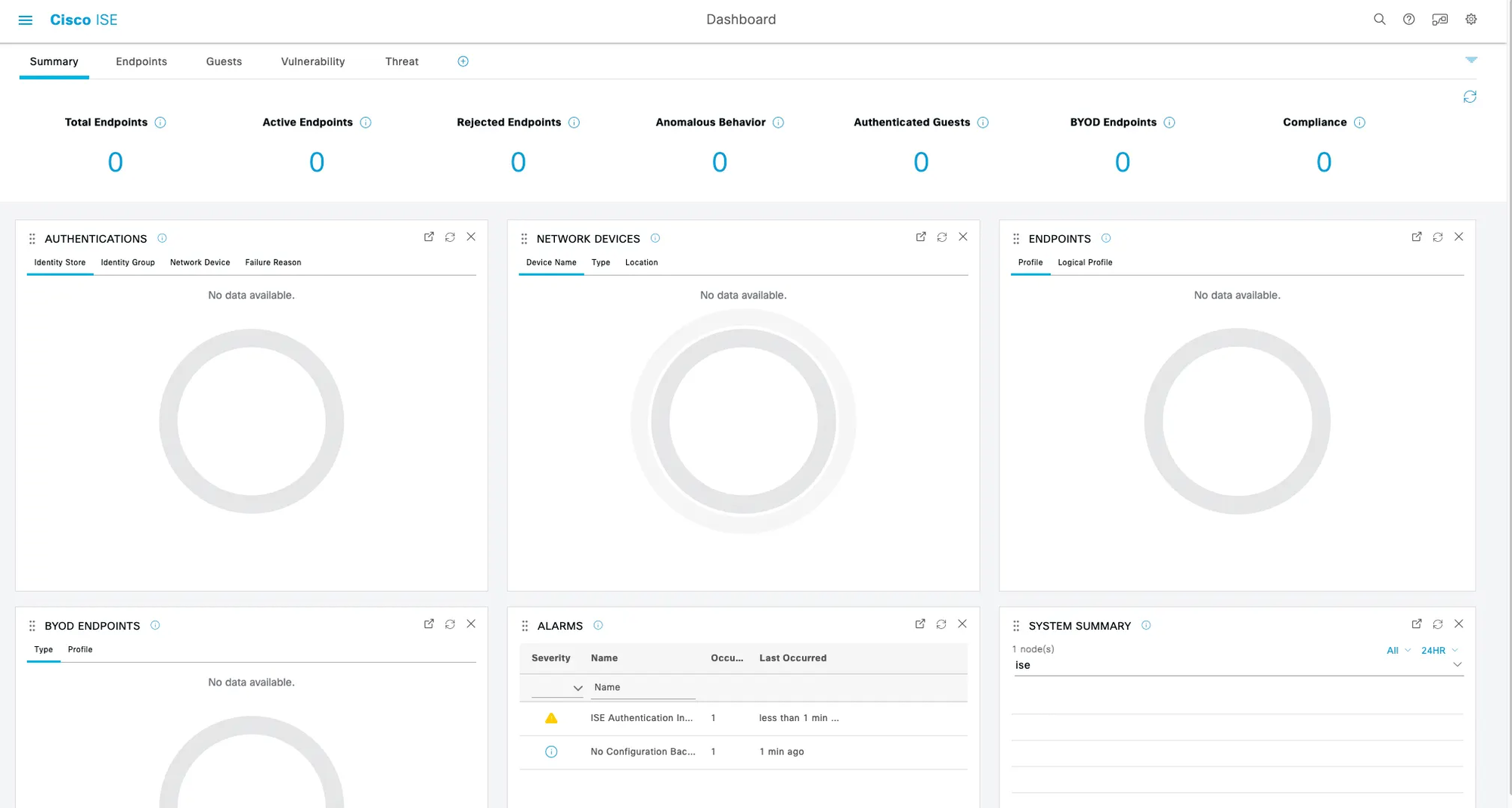

show application status ise

Network Device Group

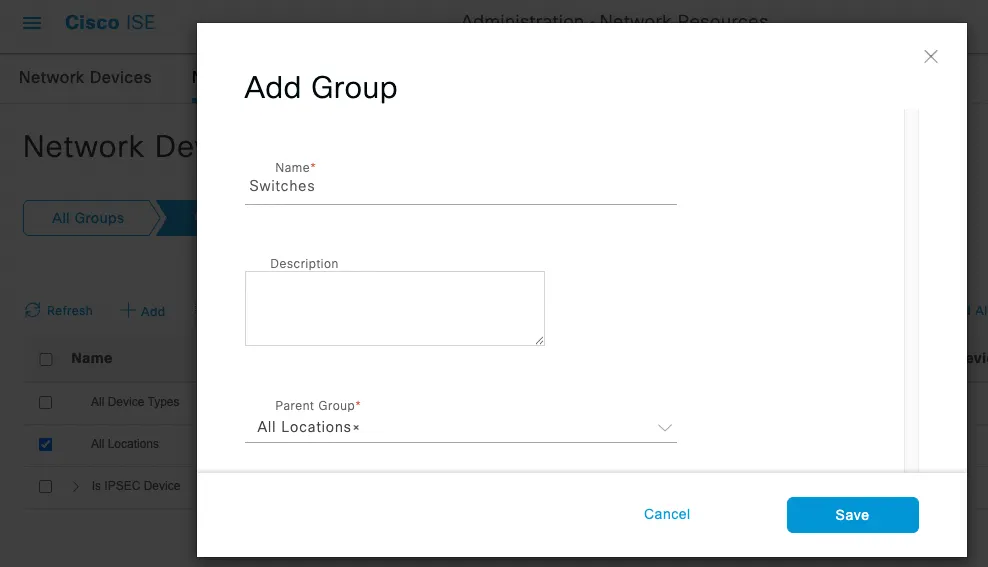

Create a new network device group

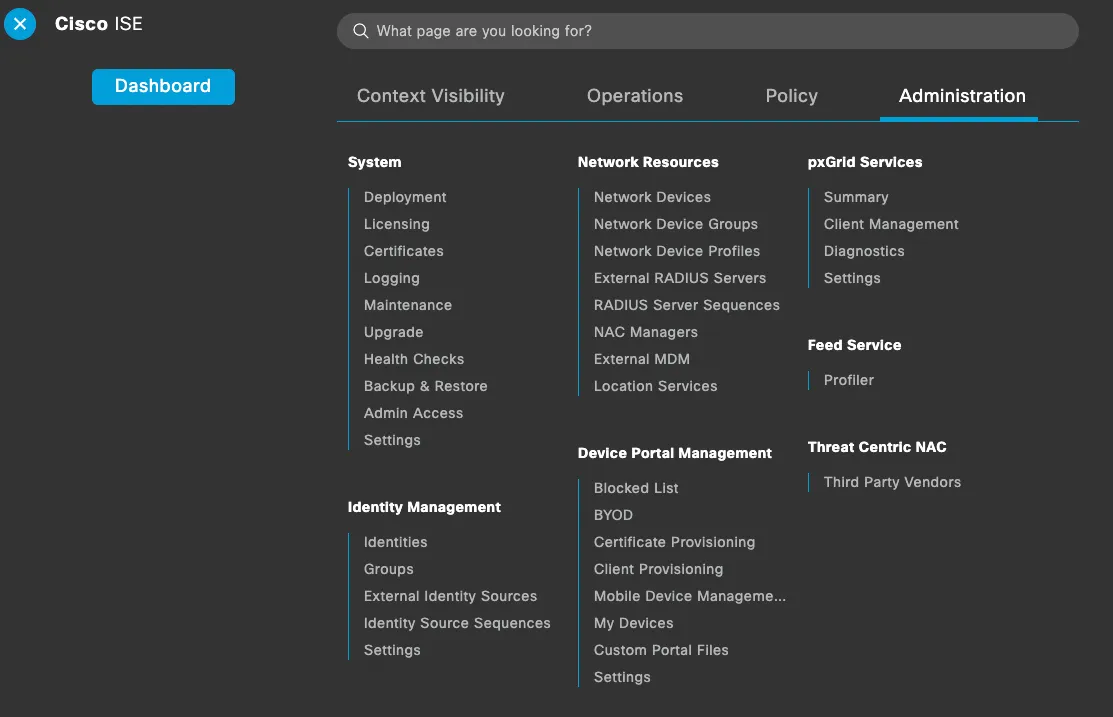

Administration > Network Device Groups

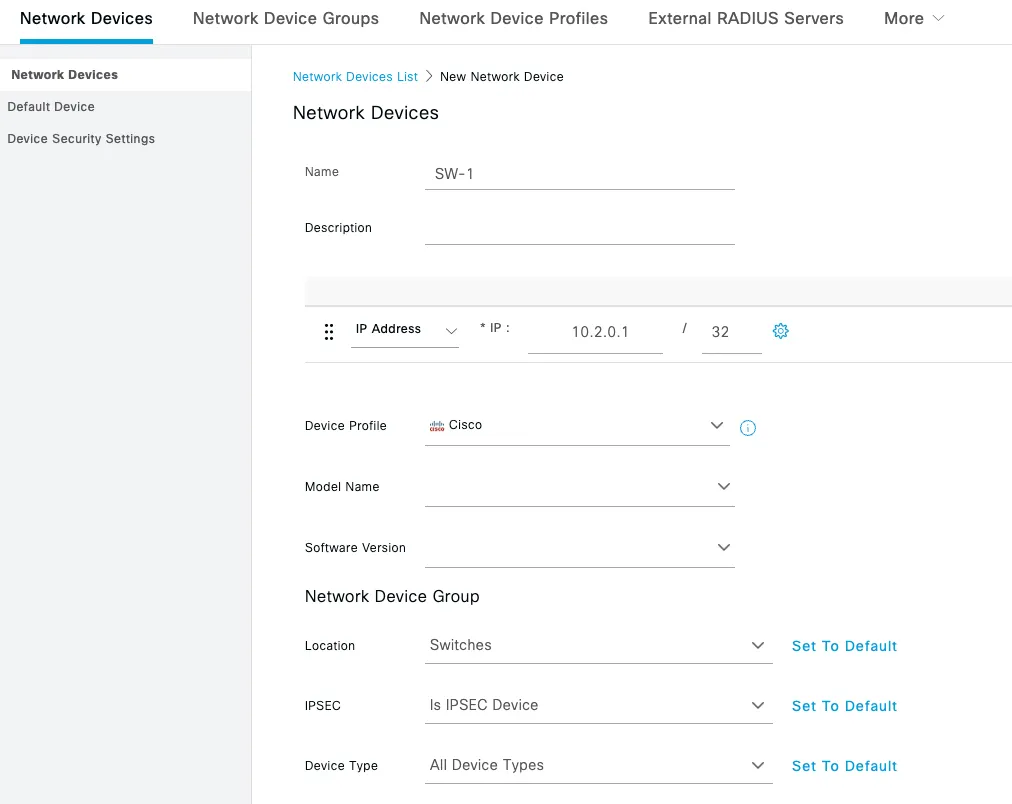

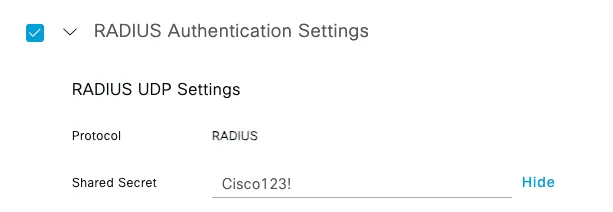

Network Devices

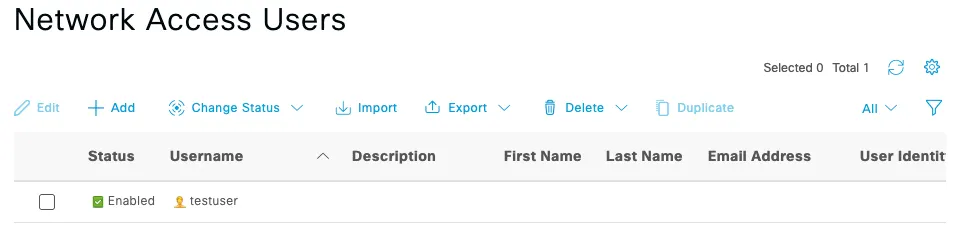

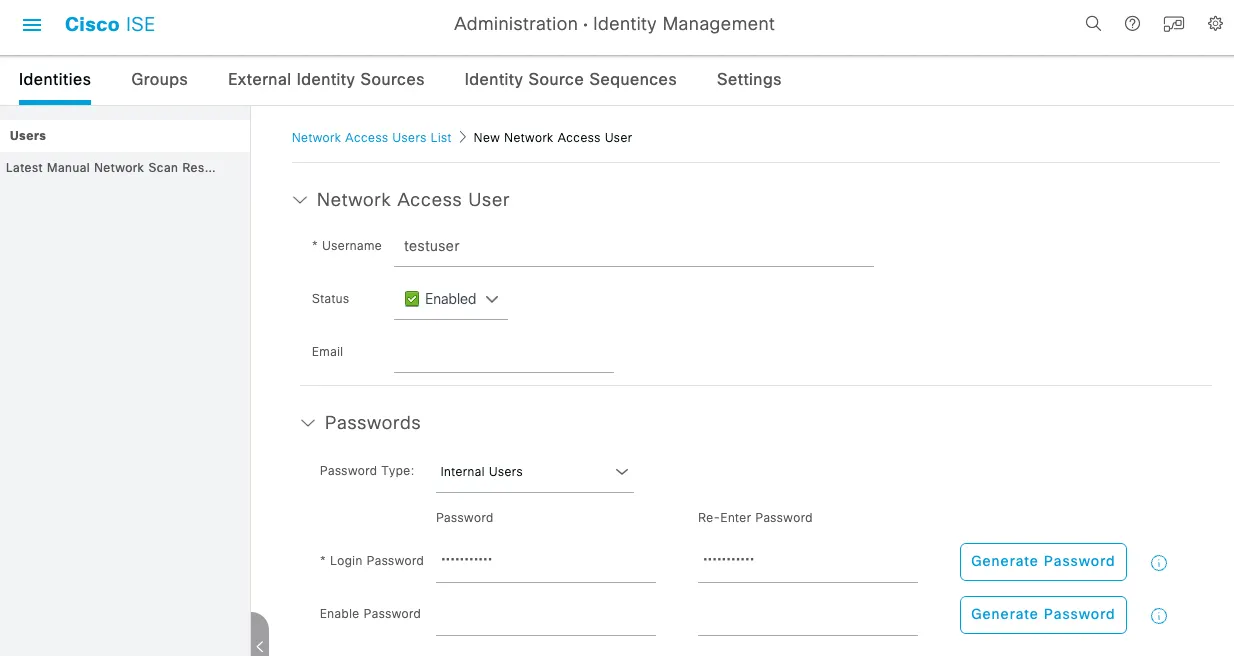

Add Network Access User

Administration > Identities

Configure the Cisco IOS Device and test

aaa new-model
aaa authentication login default enable

radius server ISE
  address ipv4 10.2.0.20 auth-port 1812 acct-port 1813
  key Cisco123!

aaa group server radius ISE_GROUP
  server name ISE

radius-server vsa send authentication
radius-server vsa send accounting

ip device tracking

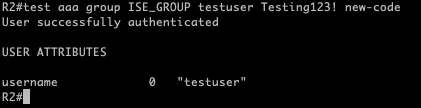

test aaa group ISE_GROUP testuser Testing123! new-code
