ISE - 802.1x Wired Authentication

EAP - Extensible Authentication Protocol Framework

VLAN, ACL, Time-based Access, TrustSEC, EAP-TLS, EAP-MSCHAPv2, EAP-FAST, LEAP, PEAP

Switchport modes,

• single-host - single MAC address
• multi-host - first MAC authenticates to open the port, other MACs are then allowed
• multi-domain (MDA) - Voice and Data, single data MAC address + single voice MAC address
• multi-auth - each MAC needs to authenticate

Monitor mode (Open) - Authentication is running, but the port is still open even if the authentication fails, used for testing/rollout.

Switch configuration

Assumes RADIUS server has already been configured.

ISE - Identity Services Engine

Overview of Cisco Identity Services Engine

CG1NETWORKCraig Garnham

aaa authentication dot1x default group radius

aaa authorization network default group radius

aaa accounting dot1x default start-stop group radius

!! Include endpoint IP in authentication request
radius-server attribute 8 include-in-access-req

dot1x system-auth-control


int gi0/1/1
  switchport host
  authentication host-mode multi-auth
  authentication open
  authentication periodic
  authentication timer reauthenticate server
  dot1x pae authenticator
  dot1x timeout tx-period 10
  authentication port-control auto

Show configuration

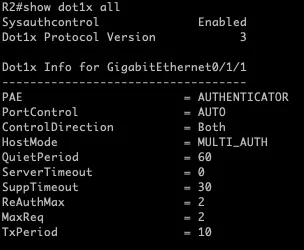

show dot1x all

Windows Client Configuration

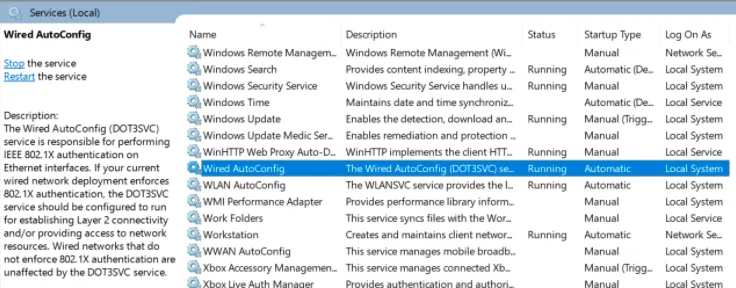

Wired AutoConfig service needs to be changed to Automatic and started.

Network Adapter Settings

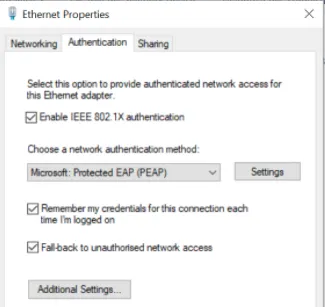

Enable Authentication and select Microsoft PEAP

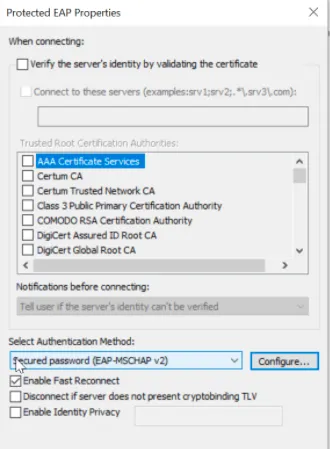

In the PEAP settings, disable server certificate verification for testing, as the certificate has not yet been configured.

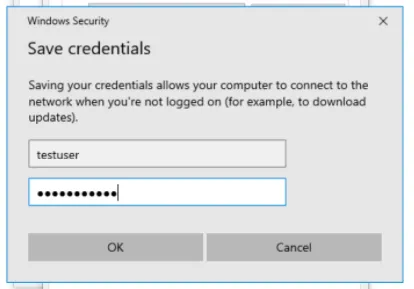

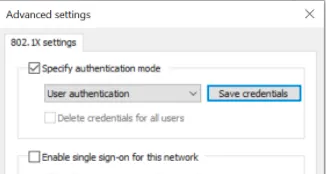

On Advanced settings, select User authentication and Save credentials.

End the details of the network user created in ISE.

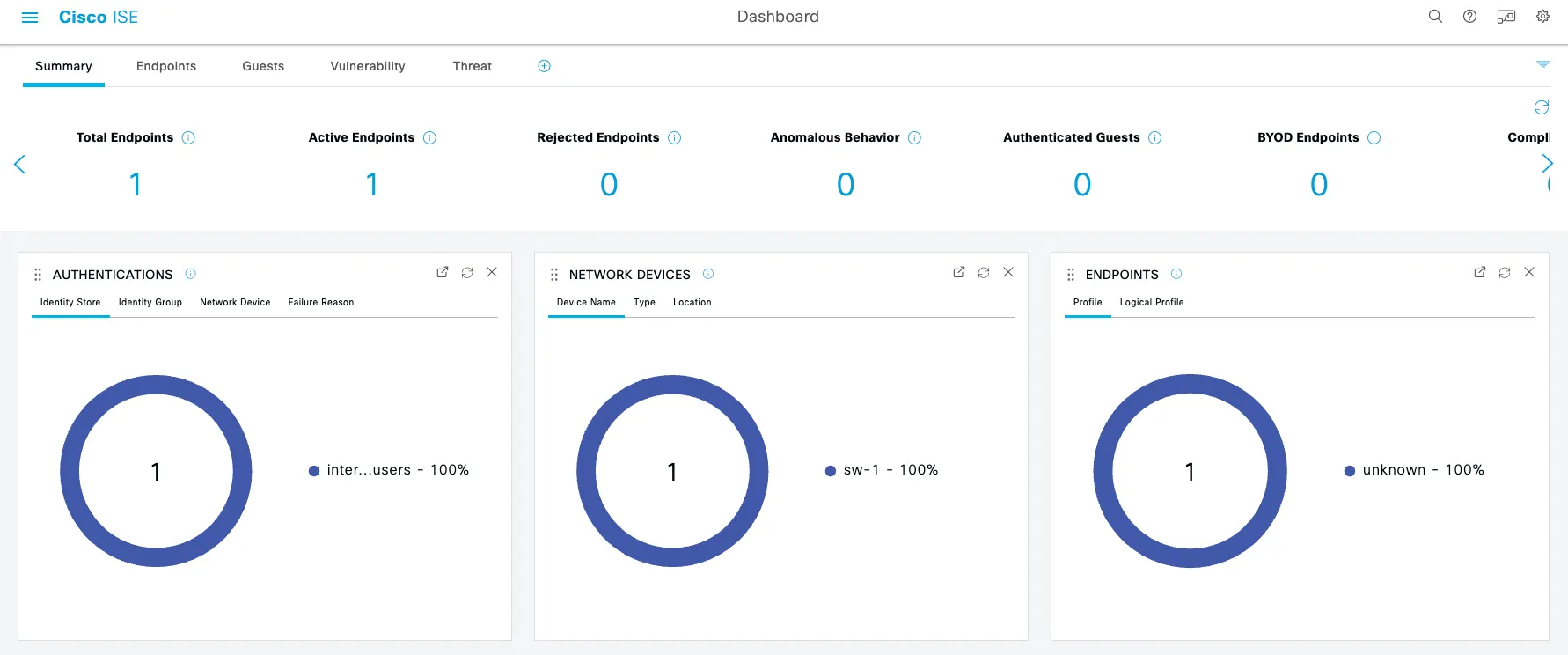

The PC should now connect to the network.

Switch Verification

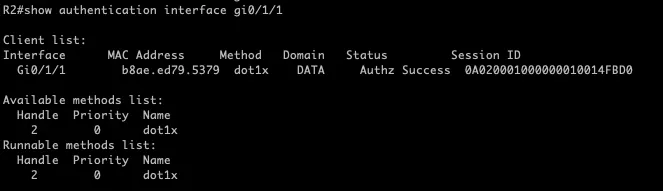

show authentication interface gi0/1/1

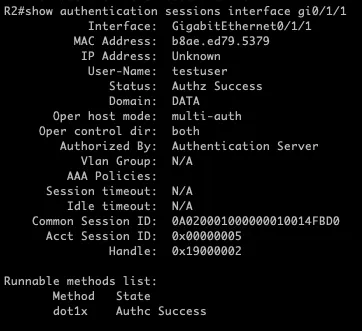

show authentication session interface gi0/1/1
