ISA 2000 - Firewall

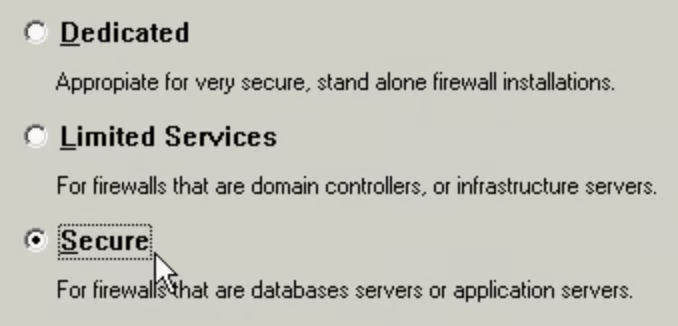

Applying the Security Templates, once you apply these, you can’t go back.
securwiz.log in ISA program files directory lists changes made by security template.
| Level | Servers | Domain Controller | Features |
|---|---|---|---|
| Dedicated | HISECWS.INF | HisecDC.INF | Standalone Firewall |
| Limited Services | SECUREWS.INF | SecureDc.INF | Firewall and Cache |
| Secure | BasicSv.INF | BasicDc.INF | Multifunction machine |
Simple Firewall Design
Two network cards, one internal, one external.
Back to Back Perimeter Firewall Design
Two ISA servers. DMZ network in between the ISA servers.

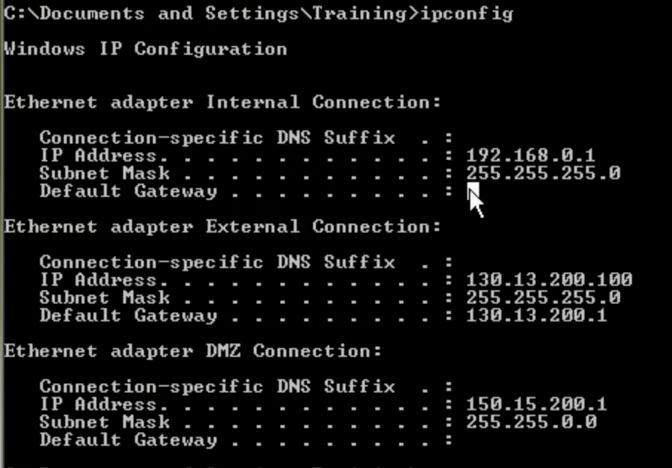

Three Homed Perimeter Firewall Design
Third network card is used for DMZ network. DMZ addresses are not in LAT.
- web-proxy service: only allows web traffic
- firewall service-proxy: any TCP/UDP traffic from clients, proxied by ISA server
- firewall service-routing: passes packets between the internet and clients

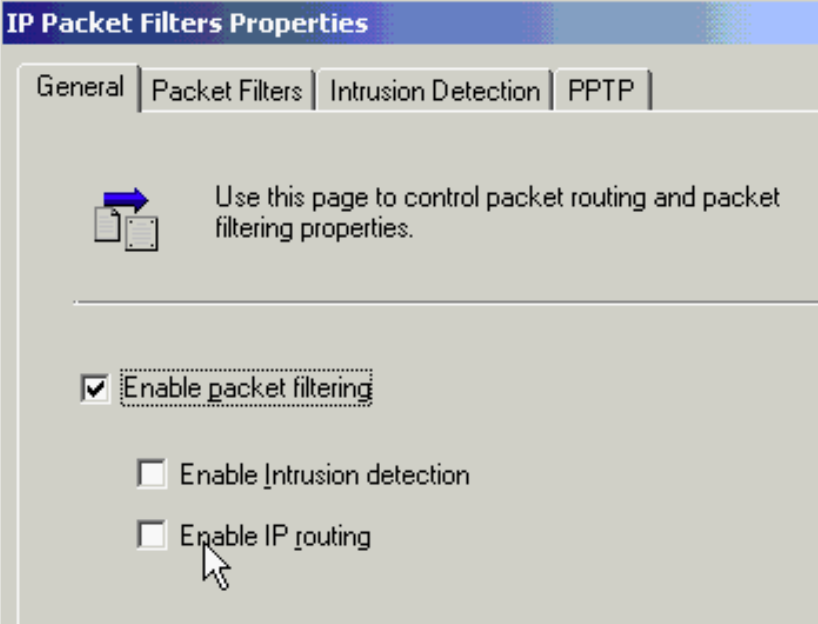

- Packet Filter (Off) IP Routing (Off): ISA can proxy for clients, no protection for ISA server, only used on leased lines
- Packet Filter (On) IP Routing (Off): Most common if external access is not required
- Packet Filter (On) IP Routing (On): DMZ network
- Packet Filter (Off) IP Routing (On): Not recommended, routing between networks without security, built-in doesn’t need ISA server.
