Frame Relay

Cisco Jan 5, 2025

Packet Switched Networks

  1. X.25
  2. Frame Relay (1984)
  3. ATM
  4. MPLS

Definations

  • DTE - Data Terminal Equipment (End device and interface device)
  • DCE - Data Communication Equipment (carrier switches)
  • SVC - Switched virtual circuit, the connection is created on demand when required
  • PVC - Permanent virtual circuit, connection from one site to another
  • CIR - committed information rate, minimum bandwidth on link
  • LAR - local access rate, physical max speed of connection
  • LMI - Local Management Interface, signaling between router and service provider (Cisco, ANSI, or Q.933A)
  • DLCI - Data Link Connection Identifier, equivalent to MAC address (16-1007)
⚠️
DLCIs are locally significant.

PVC Status

  • INACTIVE - DLCI is valid, but the other side is not working
  • ACTIVE - DLCI is up
  • DELETED - service provider has no record of DLCI

Encapsulation

encapsulation frame-relay (Cisco - Default)

Flag Address Packet Type Data FCS Flag

encapsulation frame-relay ietf (Other vendors - RFC 1490 / RFC 2427)

Flag Address Ctrl PAD NLPID Data FCS Flag

Address (DLCI) 10 Bits

High Bits (6) C/R EA
Low Bits (4) DE EA
  • C/R - comand or responce
  • EA - Extended address bit
  • DE - Discard Eligibility, set when frame is over the CIR
  • FECN - Forward Explicit Congestion Notification
  • BECN - Backward Explicit Congestion Notification

Frame relay switch sets FECN bit to 1, on next frame to the source it sets BECN bit to 1. When BECN is received, reduce sending by 25%

Local Management Interface

AKA Router DLCI Mgmt
Cisco Cisco Cisco 1023
ITU Q.933A Annex A Q.933A 0
ANSI T1.617D Annex D ANSI 0

frame-relay lmi-type ?

iOS > 11.2 can auto detect lmi type. Default is Cisco or auto sense

Extensions

  • VC Status Message - PVC Status

Optional Extensions

  • Global Addressing

By default, frame relay has no unique layer 2 addressing

Enables ARP to function.

  • Multicasting

Frame relay is Non-broadcast Multiple Access (NBMA)

m-cast DLCI: 1019-1022

Used for routing protocols. Status messages can also be sent.

Mapping

Manual

frame-relay [IP/IPX] [Address] [Local DLCI] {broadcast} {encapsulation type}

Dynamic

On by default. Inverse ARP - Layer 2 (DLCI/MAC) to IP Address.

no frame-relay inverse-arp ip [DLCI]

Frame Relay PVC Design

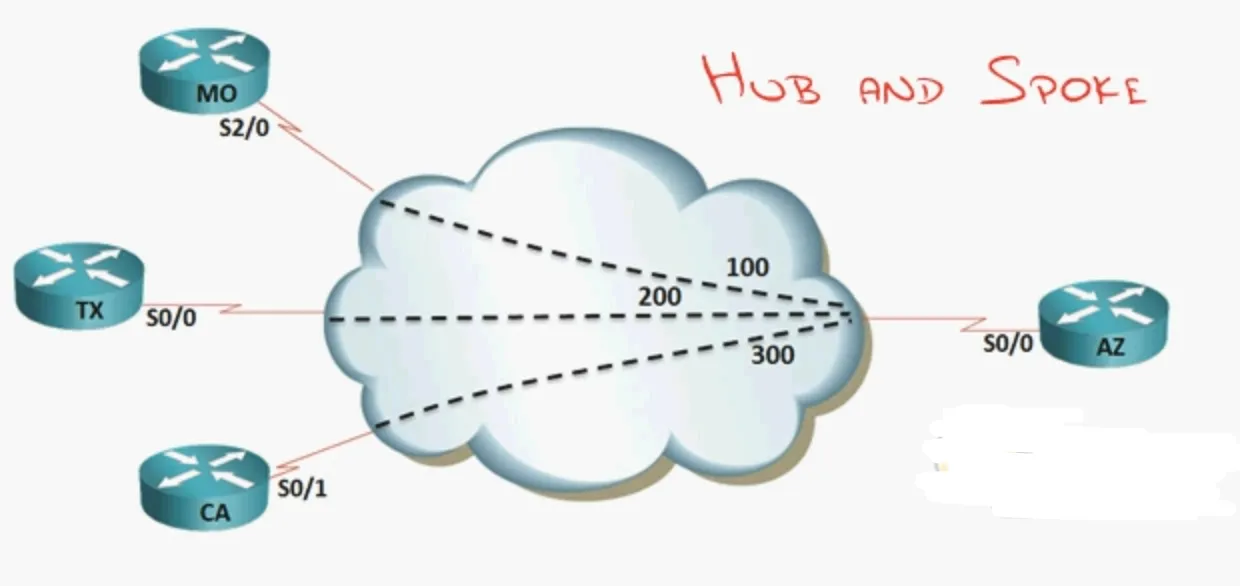

Hub and Spoke

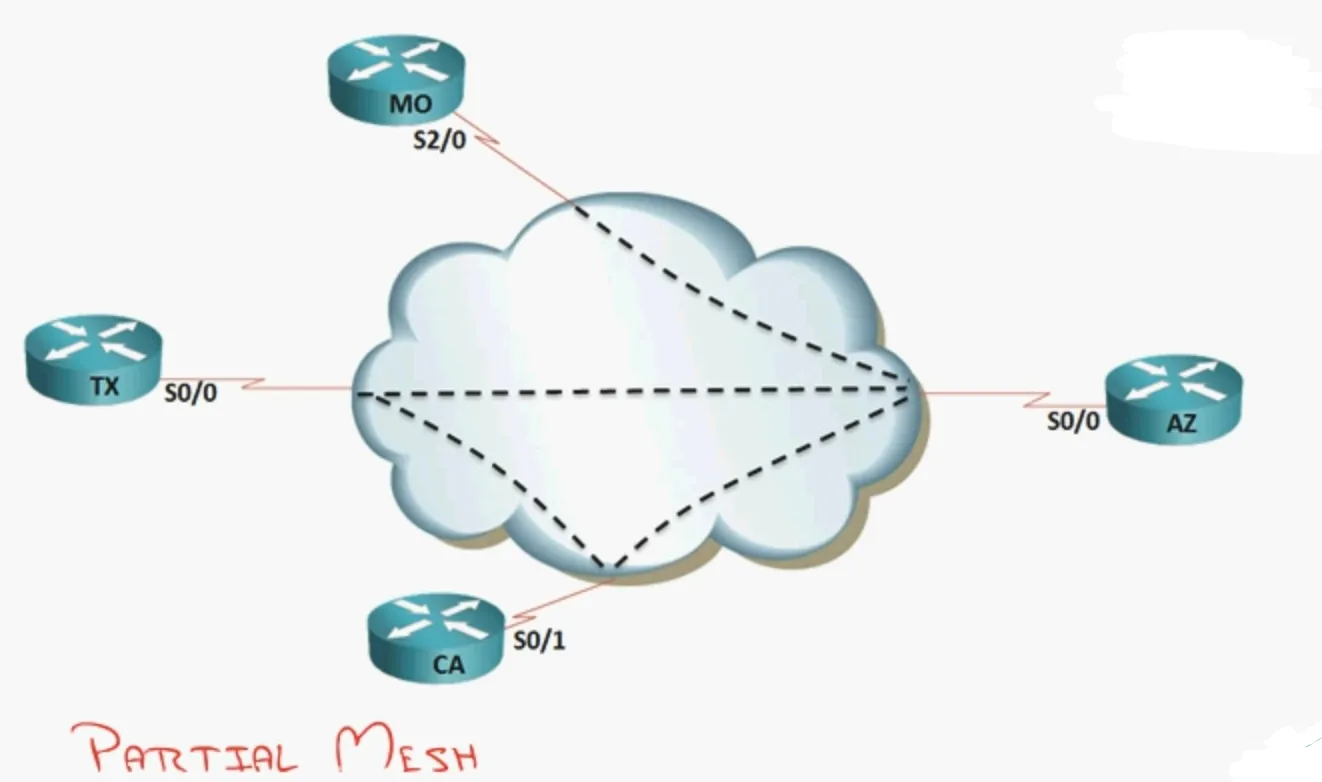

Partial Mesh

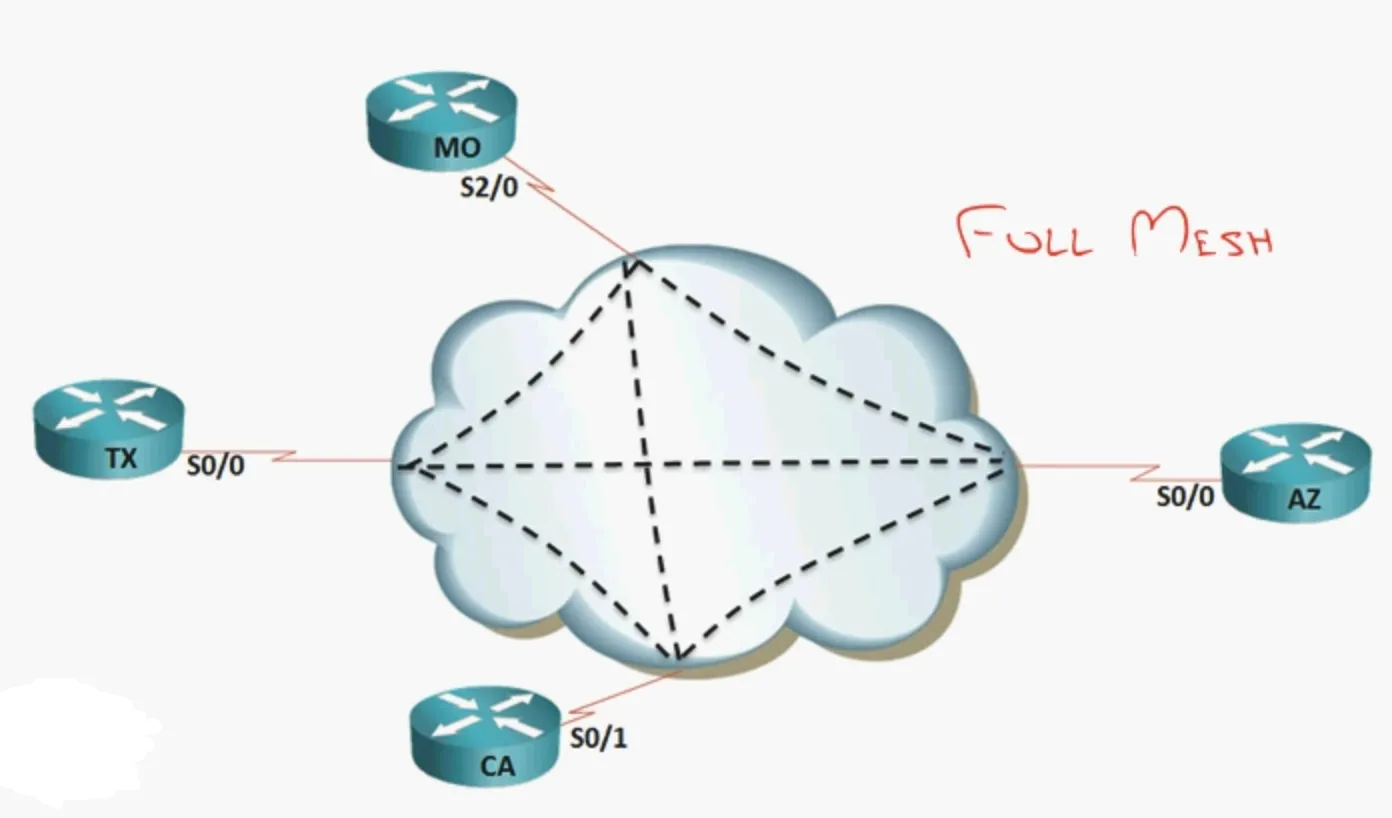

Full Mesh

Multipoint

  • All routers are on the same subnet
  • Multiple DLCI numbers mapped to the same interface
  • Causes problems with split horizon

Configuring Frame Relay

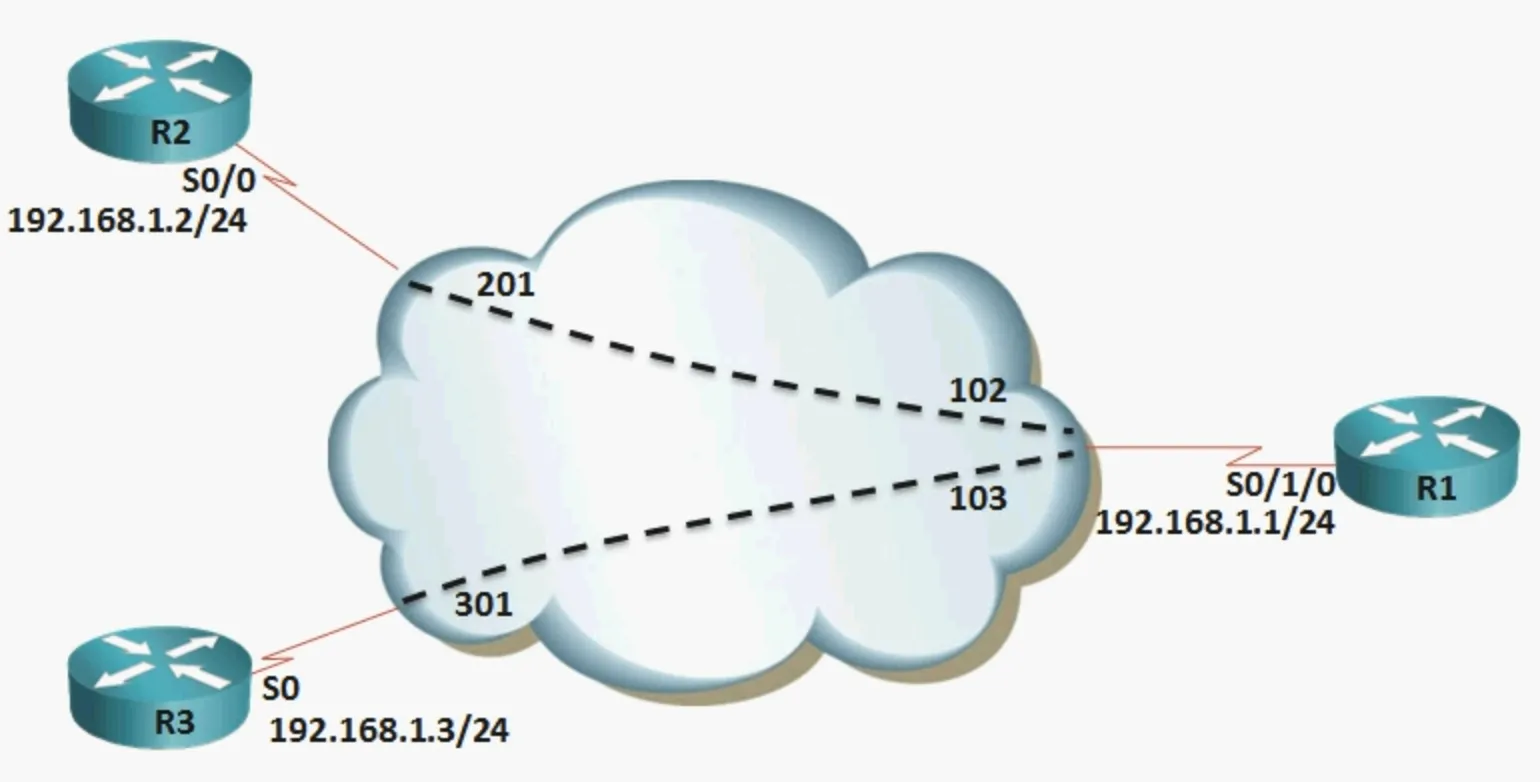

Multipoint Configuration

#R1
interface serial 0/0
	ip address 192.168.1.1 255.255.255.0
	encapsulation frame-relay
	no ip split-horizon eigrp 1
	no shut

#R2
interface serial 0/0
	ip address 192.168.1.2 255.255.255.0
	encapsulation frame-relay
	frame-relay map ip 192.168.1.3 201
	no shut

#R3
interface serial 0/0
	ip address 192.168.1.3 255.255.255.0
	encapsulation frame-relay
	frame-relay map ip 192.168.1.2 301
	no shut

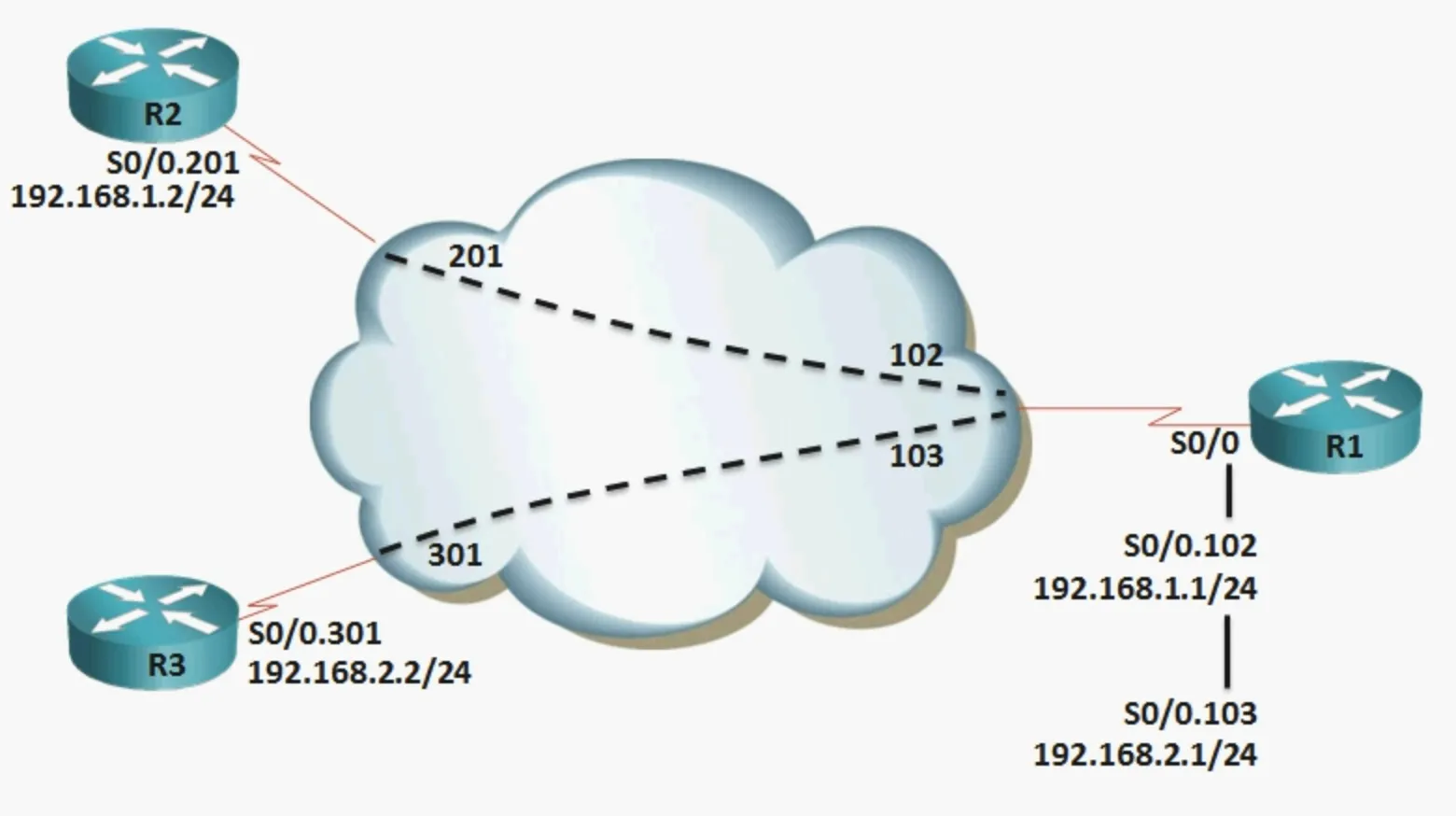

Point-to-Point Configuration

#R1
interface serial 0/0
	encapsulation frame-relay
	no shut

interface serial 0/0.102 point-to-point
	ip address 192.168.1.1 255.255.255.0
	frame-relay interface-dlci 102

interface serial 0/0.103 point-to-point
	ip address 192.168.2.1 255.255.255.0
	frame-relay interface-dlci 103

#R2
interface serial 0/0
	encapsulation frame-relay
	no shut

interface serial 0/0.201 point-to-point
	ip address 192.168.1.2 255.255.255.0
	frame-relay interface-dlci 201


#R3
interface serial 0/0
	encapsulation frame-relay
	no shut

interface serial 0/0.301 point-to-point
	ip address 192.168.2.2 255.255.255.0
	frame-relay interface-dlci 301

Frame Relay Switch Configuration

frame-relay switching

interface serial 0/0
	no ip address
	encapsulation frame-relay
	clock rate 2000000
	frame-relay intf-type dce
	frame-relay route 102 interface Serial0/1 201
	frame-relay route 103 interface Serial0/2 301

interface serial 0/1
	no ip address
	encapsulation frame-relay
	clock rate 2000000
	frame-relay intf-type dce
	frame-relay route 201 interface Serial0/0 102

interface serial 0/2
	no ip address
	encapsulation frame-relay
	clock rate 2000000
	frame-relay intf-type dce
	frame-relay route 301 interface Serial0/0 103

show frame-relay route

Monitoring Frame Relay

  • show interface serial (Physical)
    • Up, Down, Admin Down
    • Control Signals
      • DCD - Data Carrier Detect
      • DSR - Data Set Ready
      • DTR - Data Terminal Ready
      • RTS - Request to send
      • CTS - Clear to send
  • show frame-relay lmi (Protocol)
    • LMI Statistics
    • Type
    • Counters (Invalid, Valid)
  • show frame-relay pvc (Logical)
    • DLCI
    • DLCI Usage
    • PVC Status (Active, Inactive, Deleted)
    • Congestion Control
  • show frame-relay map

Debug commands

  • debug frame-relay events
  • debug frame-relay packet
  • debug frame-relay lmi
