DMVPN - Dynamic Multipoint VPN

Components of DMVPN

• mGRE Tunnel interfaces
• Static or Dynamic IPs for spokes
• Any IGP Routing Protocol can be used
• NHRP for spoke discovery
• IPsec profile

Hub needs a fixed IP, spokes will check in with the hub to build tunnels.

Spokes send NHRP Requests to the hub; spokes can then establish tunnels directly with one another to avoid routing traffic through the hub.

Hub configuration

int tunnel 0
  tunnel source gi1/0
  tunnel mode gre multipoint
  tunnel key 1234
  ip nhrp network-id 1
  ip nhrp authentication Password1
  ip nhrp map multicast dynamic
  ip nhrp shortcut
  ip nhrp redirect
  ip address 172.16.0.1 255.255.255.0
  ip mtu 1400
  ip tcp adjust-mss 1360
  no ip next-hop-self eigrp 1
  no ip split-horizon eigrp 1

router eigrp 1
  no auto-summary
  network 10.0.0.0
  network 172.16.0.0

Spoke configuration

int tunnel 0
  tunnel source gi1/0
  tunnel mode gre multipoint
  tunnel key 1234
  ip nhrp network-id 1
  ip nhrp authentication Password1
  ip nhrp shortcut
  ip nhrp nhs 172.16.0.1
  ip nhrp map 172.16.0.1 15.0.0.1
  ip nhrp map multicast 15.0.0.1
  ip address 172.16.0.2 255.255.255.0
  ip mtu 1400
  ip tcp adjust-mss 1360

router eigrp 1
  no auto-summary
  network 10.0.0.0
  network 172.16.0.0

Verification commands

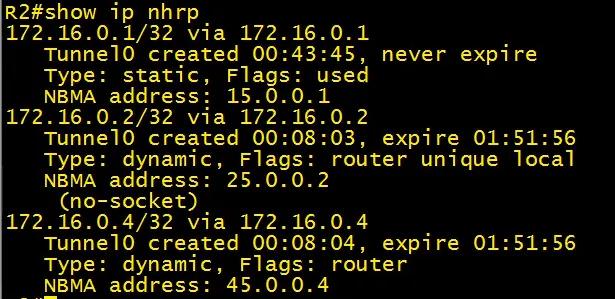

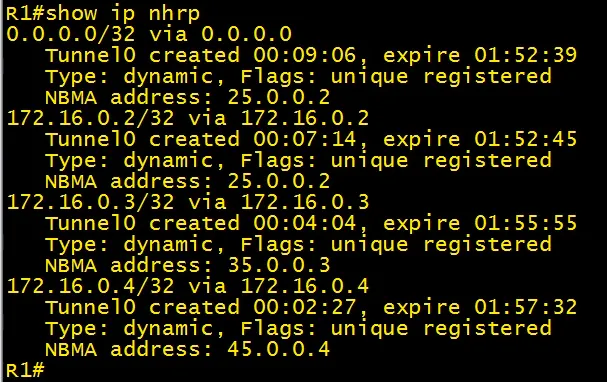

show ip nhrp
show ip nhrp summary

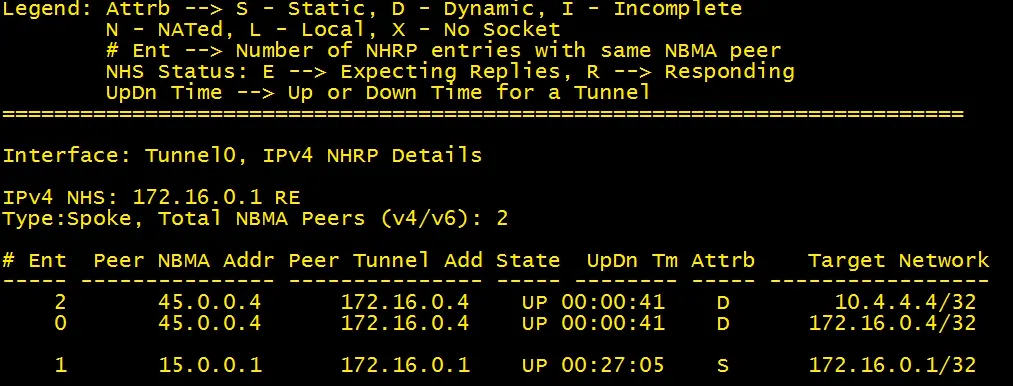

show dmvpn

Adding security to DMVPN GRE tunnels

crypto isakmp policy 1
  hash sha
  authentication pre-share
  group 14
  lifetime 86400
  encryption aes 256

crypto isakmp key Password1 address 0.0.0.0

crypto ipsec transform-set TRANSFORM_SET esp-aes 256 esp-sha-hmac
  mode transport

crypto ipsec profile IPSEC_PROFILE
  set transform-set TRANSFORM_SET

int tunnel 0
  tunnel protection ipsec profile IPSEC_PROFILE

IPSEC Verification commands

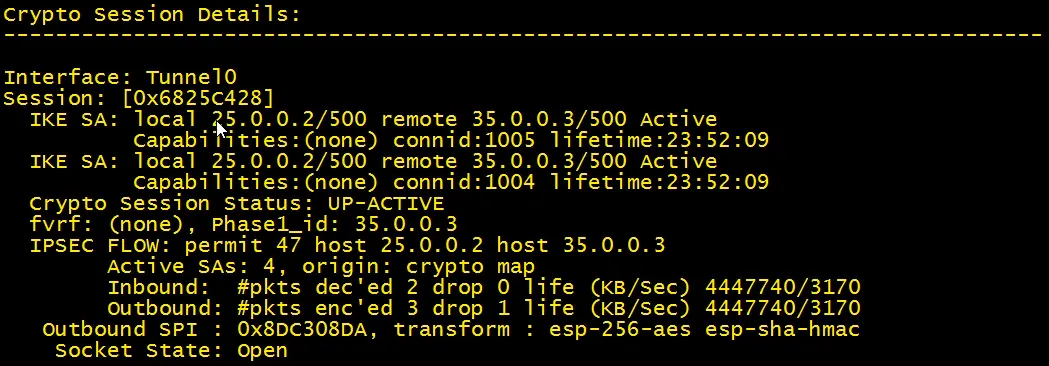

show dmvpn detail
show crypto isakmp sa detail

Troubleshooting DMVPNs

1. Verify basic connectivity (UDP ports 500 and 4500, L4 Protocol 50 ESP)
2. keys and IDs match
3. Crypto Policies match
