CSD - Cisco Secure Desktop

anytime, anywhere VPN security concerns

• Who owns the PC
• Is the PC properly secured
• Is it malware-infected
• Are passwords protected
• Cached webpages and downloaded files

Cisco Secure Desktop security features

• Cross-platform: Windows, Mac, Linux
• Prelogin assessment *
• Host Scan
• Secure Session *
• Cache Cleaner
• Keystroke Logger Detection *

*Windows only feature

Host Scan

looks for a watermark on the VPN client,

• a Registry value
• a certain file in a certain place
• a certificate

Secure Session

• Creates a secure workspace (Virtual Desktop) or partition for the session
• All corporate files and data are stored in the secure desktop
• Once the user logs out, the secure partition is wiped

Cache Cleaner

• Alternative to Secure Session
• Larger OS and web browser support
• Eliminates browser cache information at session end
  • Passwords
  • Autocomplete information
  • browser file cache
  • browser configuration modifications

Keystroke logger / Advanced Endpoint Protection

• Allows you to deny access if a keystroke logger or host emulation detected
• checks at the beginning and during the VPN session
• User is also notified of the keystroke logging application

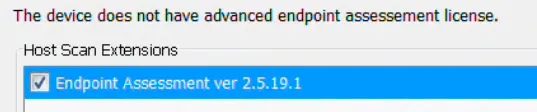

• advanced endpoint protection
  • Checks Antivirus software
  • Checks firewall software
  • Checks anti-spyware software
  • Costs more money to automatically fix the issue

CSD Process

1. User connects to the ASA via SSL
2. Operating System detection module runs
3. Pre-login assessment module runs
4. If the host passes the pre-login assessment, CSD runs
5. Keystroke logger/host emulation detection runs
6. secure session/cache cleaner runs
7. User authenticates to the VPN session
8. Dynamic access policy applied
9. Active VPN session
10. VPN termination, session cleanup

compatible

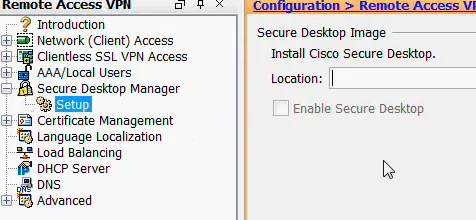

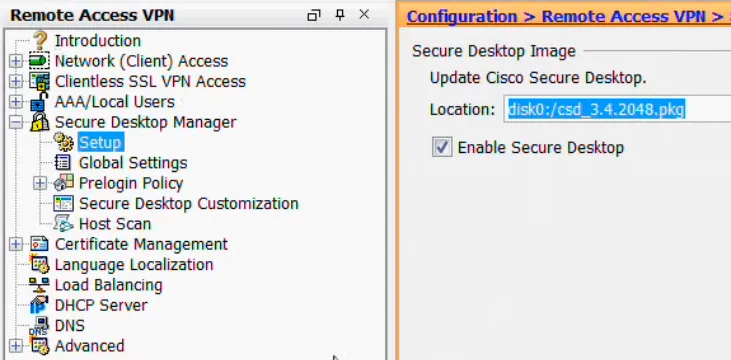

The Cisco Secure Desktop package file needs to be uploaded to the ASA, once the ASA is restarted, all the options will be avaiable and it can be enabled.

Prelogin Policy

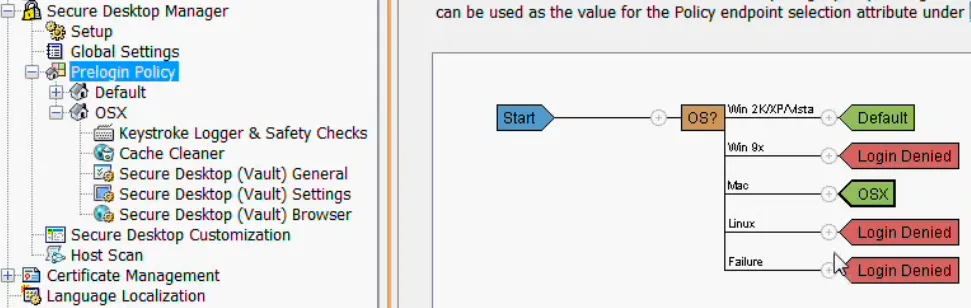

The prelogin policy is configured as a flow chart, this will select which policy is applied to the client or if access is denied.

Creating a new policy

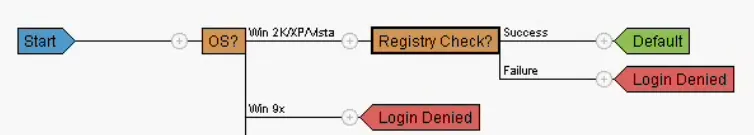

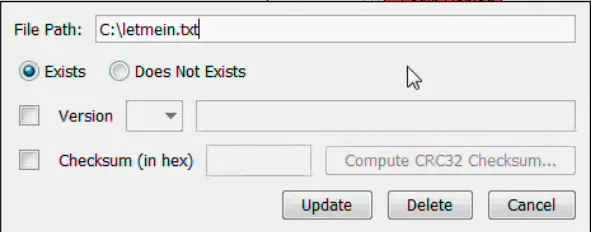

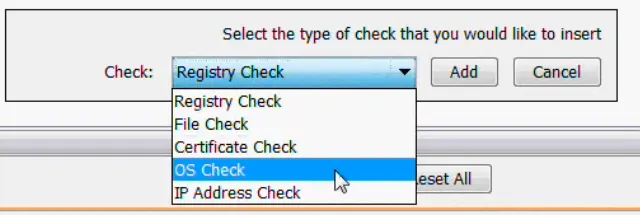

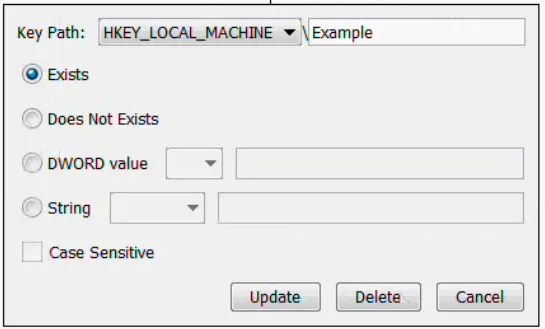

Adding additional checks

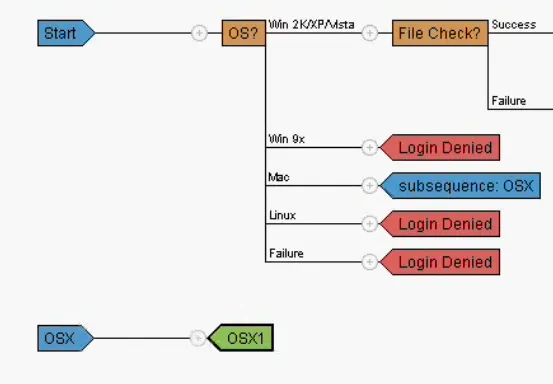

The action can be set as a subsequence to make complex polices easier to read

Cisco Secure Client can't be configured from the command line, only in ASDM.

There are only two lines for CSD in the running config.

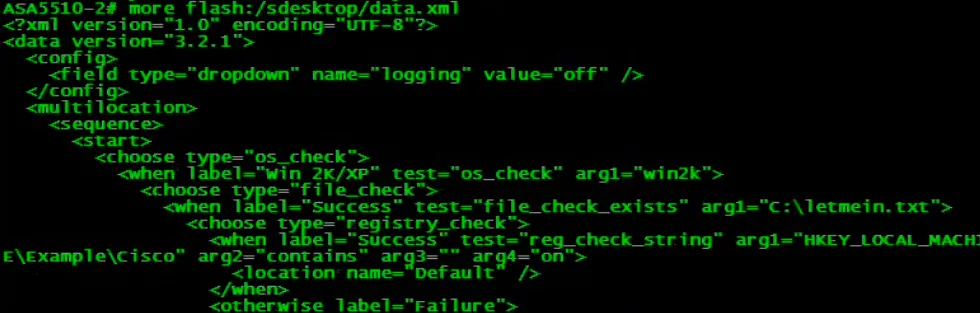

All of the configuration is stored as XML in a file /sdesktop/data.xml

Secure Desktop Configuration

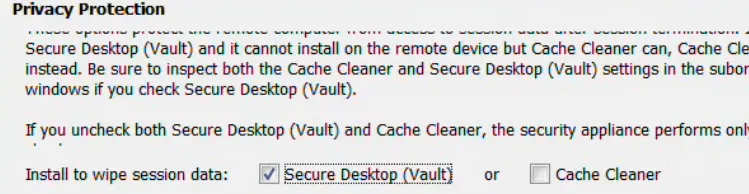

If Secure Desktop is selected and the client is not compatible then Cache Clenaer is used.

Secure Desktop General

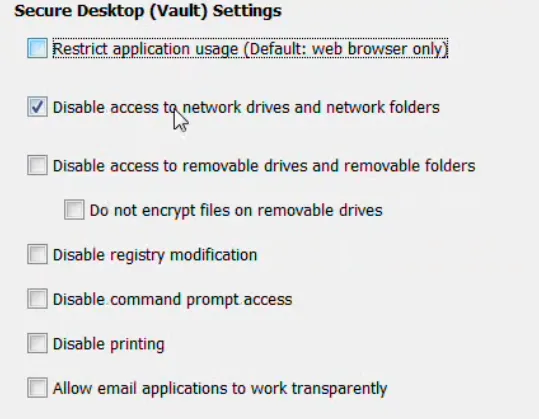

Secure Desktop Settings

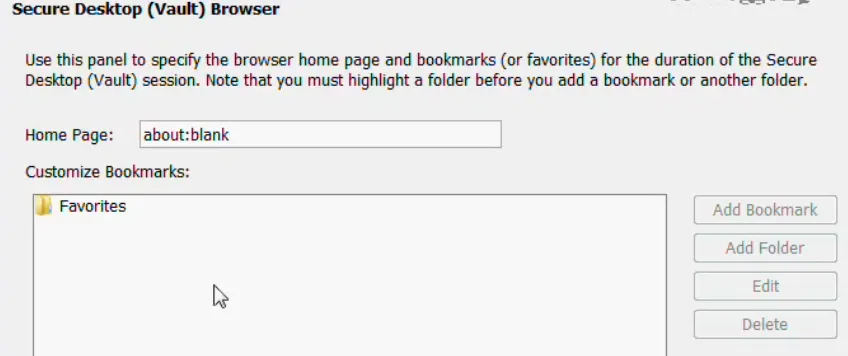

Secure Desktop Browser

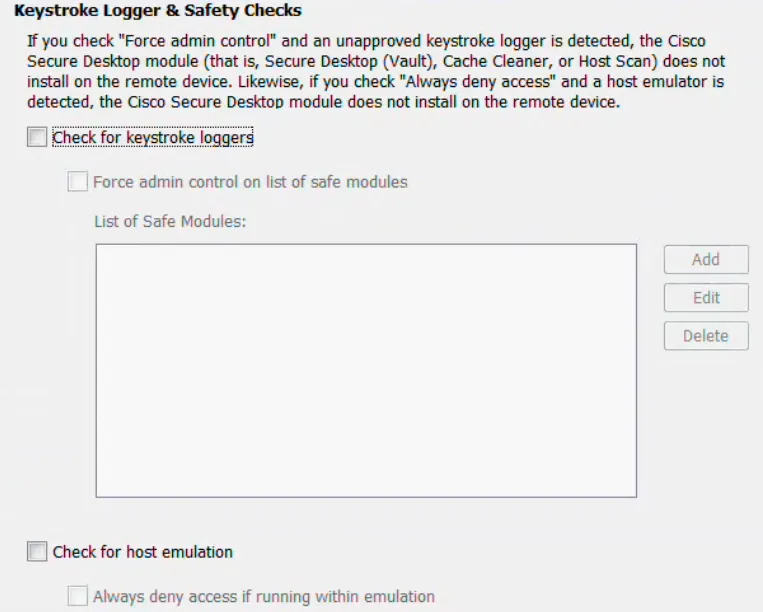

Keystroke Logger

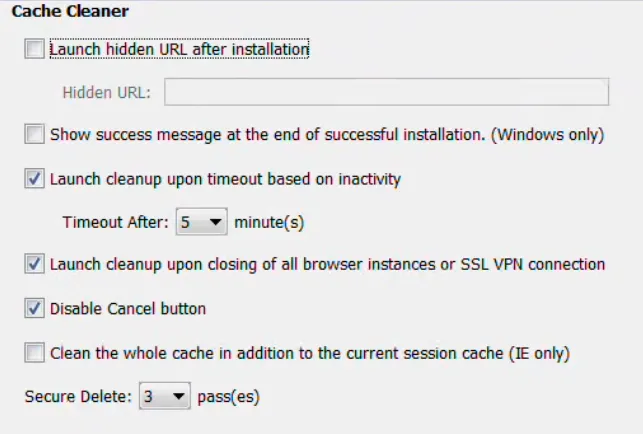

Cache Cleaner

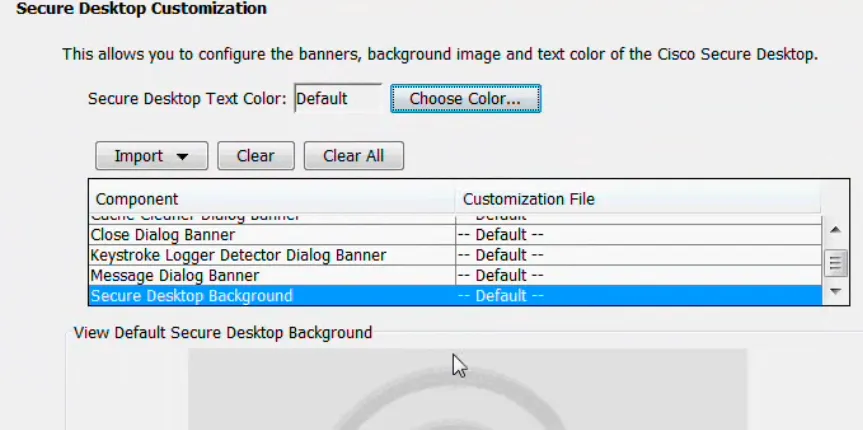

Secure Desktop Customization

The background wallpaper and images on message boxes can be replaced with custom images.

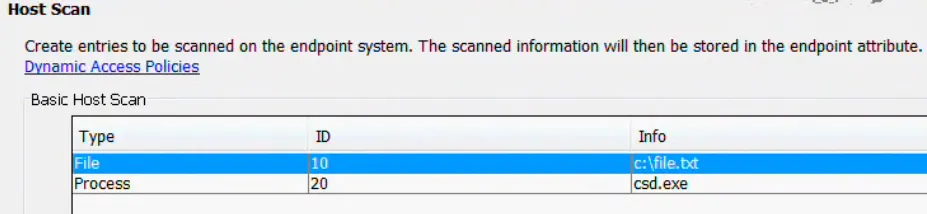

Host Scan

This is similar to checks that can be added to the Prelogin policy, but these are continually checked during the VPN session.

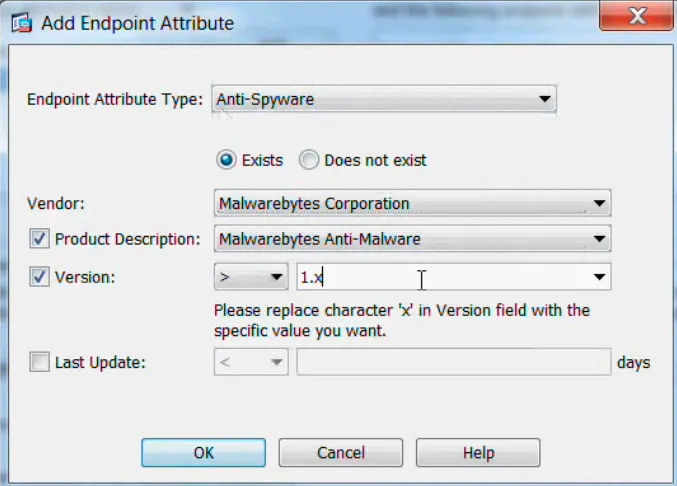

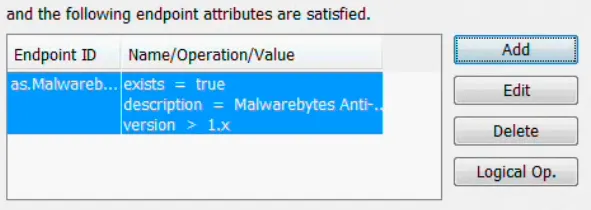

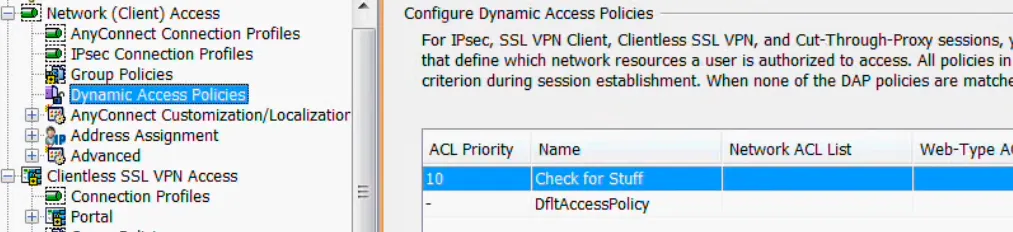

Dynamic Access Policy

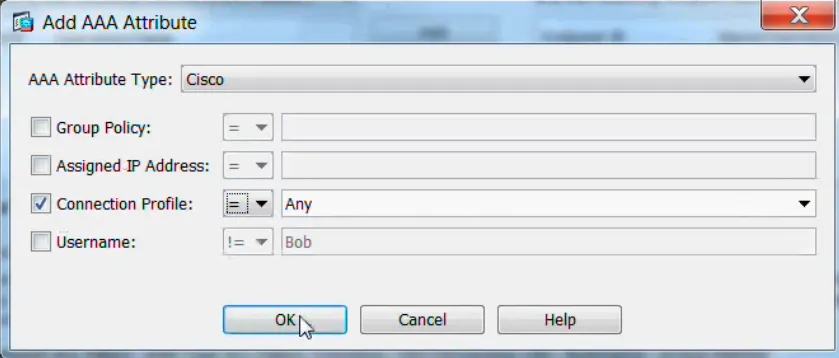

AAA Attribute to match the AnyConnect VPN Profile

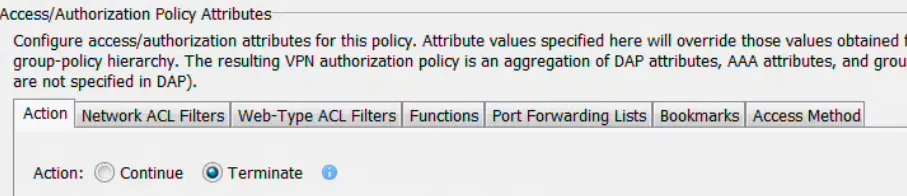

Action to be taken on matching

Client Connection

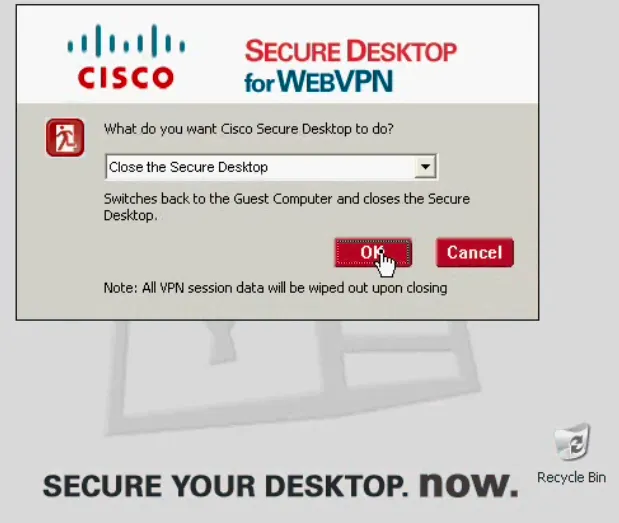

When connecting to the ASA, Secure Desktop starts installing before the login.
