ASA Anyconnect VPN

Benefits and features of Anyconnect

• Supports DTLS - Datagram Transport Layer Security
• Supports all major operating systems
• Support for start before logon (SBL)
• Automatic or manual (MSI package) installation
• Supports IPv6 internal networks
• Standalone client (doesn’t need a web browser)
• Certificate-based authentication
• Dynamic Access Policy (DAP - Failover)
• Supports Cisco Secure Desktop

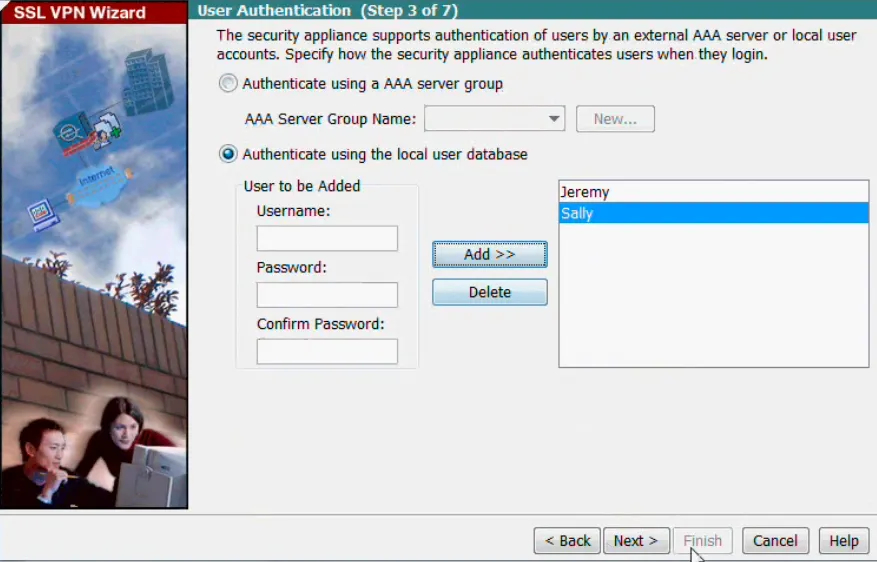

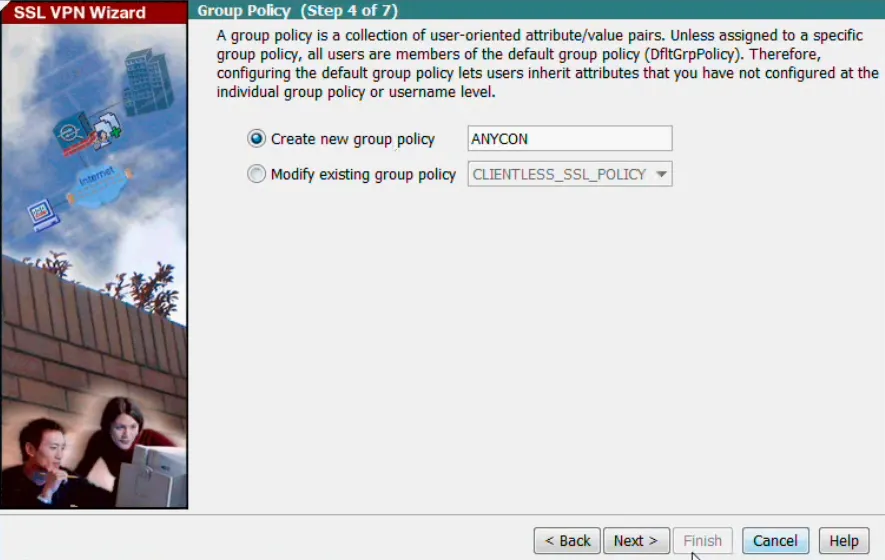

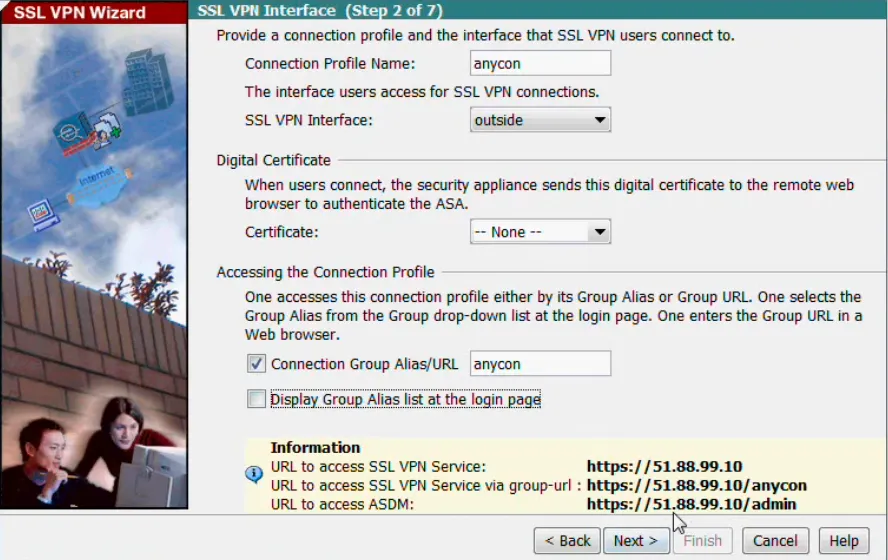

SSL VPN Wizard

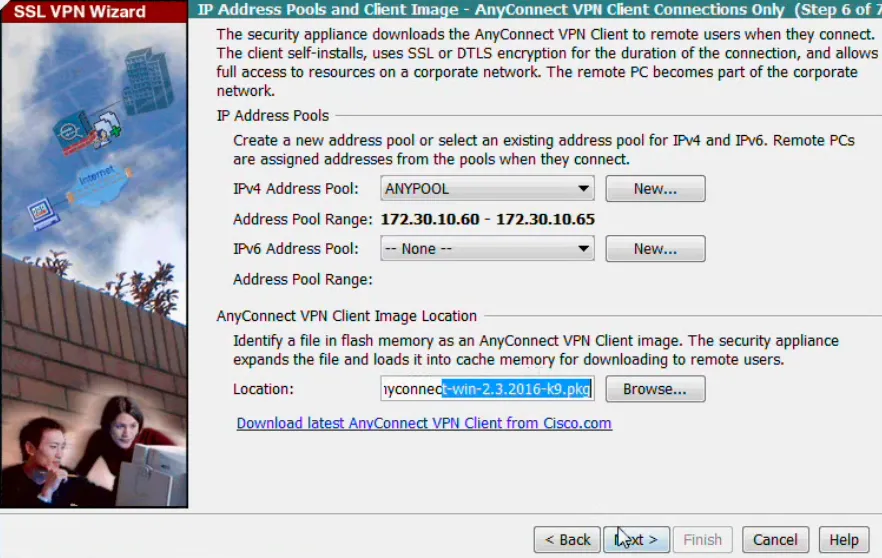

The wizard only allows one image to be selected, images for other platfoms can be added later.

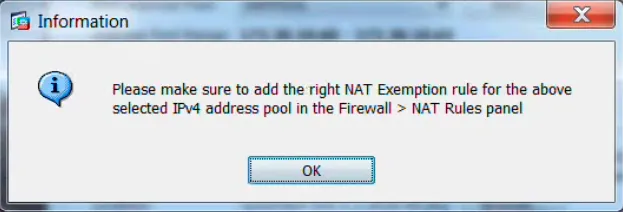

access-list NONAT ext permit 172.30.10.0 255.255.255.0 172.30.10.0 255.255.255.0
nat (inside) 0 access-list NONAT

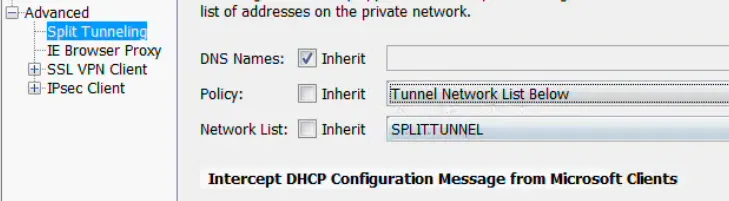

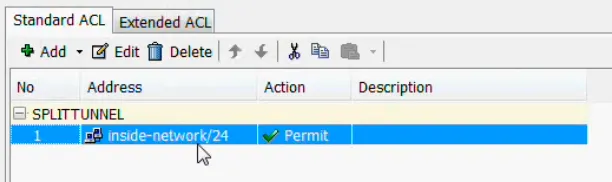

Split Tunnel Configuration

To enable split tunneling, the networks need to be added to the Network List and the Policy needs to be changed.

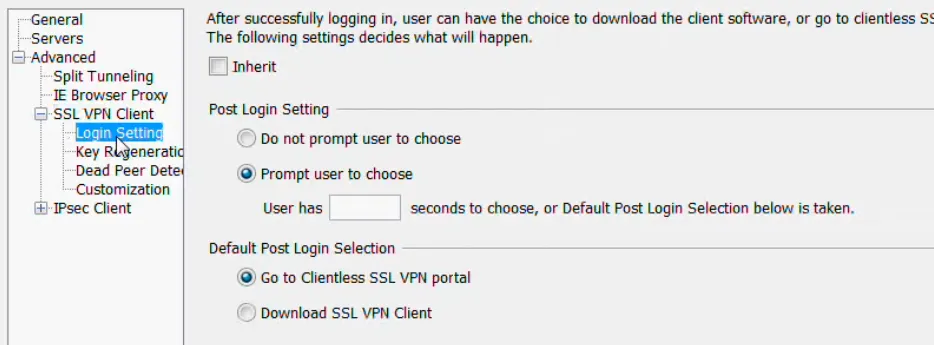

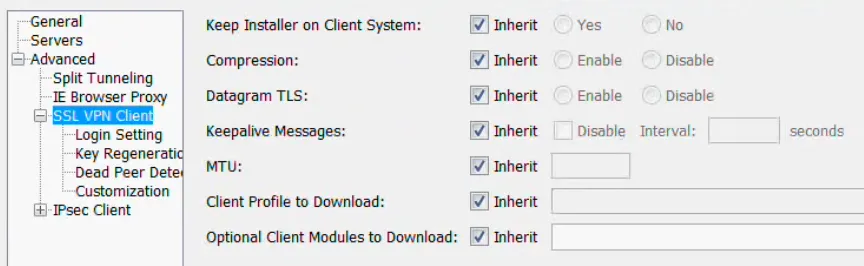

Client Settings

Turn off Keep Installer on Client system to remove client from the users device on disconnect

DTLS is enabled by default

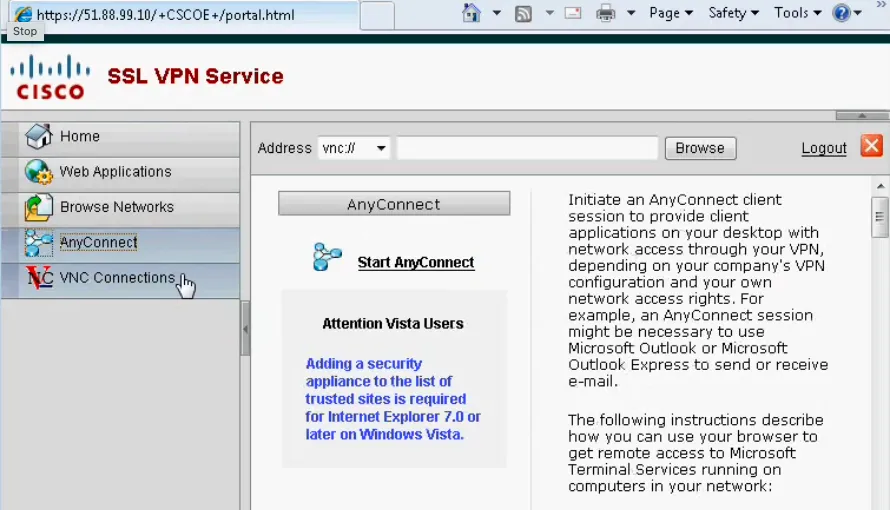

Download the client automatically once the user signs into the portal.

Troubleshooting Commands

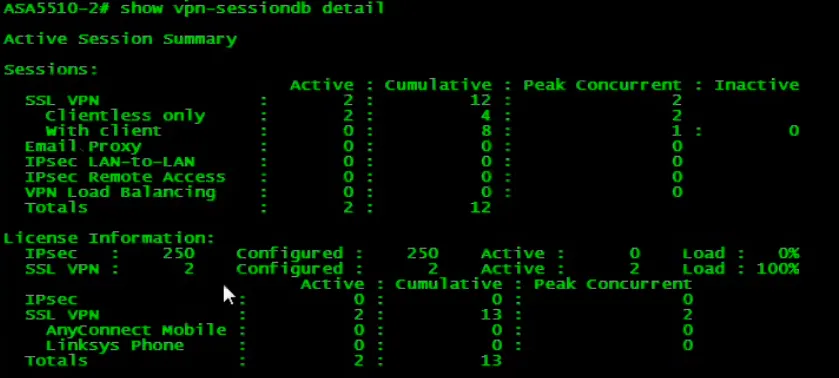

show vpn-sessiondb detail

show crypto protocol statistics ssl

debug webvpn

debug AAA

Certificate based authentication

Enable local Certificate Authority server

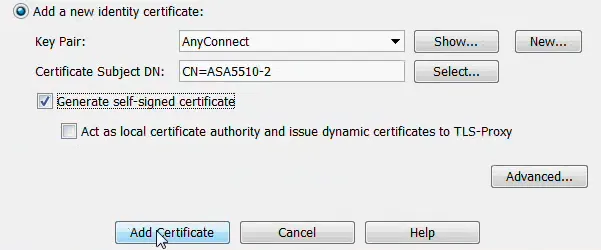

Create a self-signed certificate

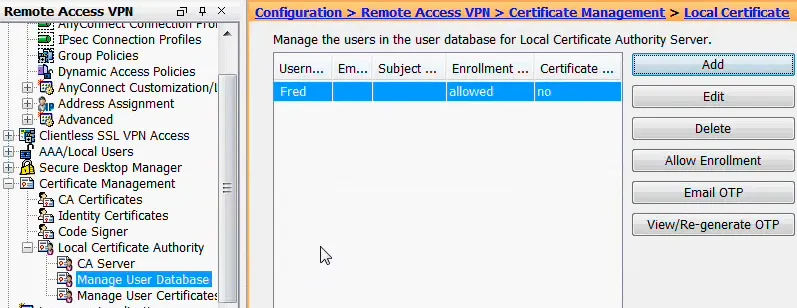

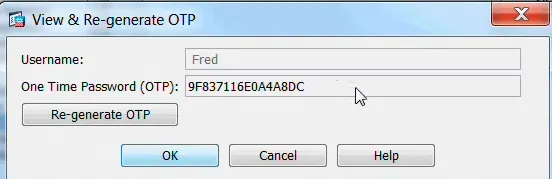

Add users to the database a generate a one time password for the users to get the certificate on their device

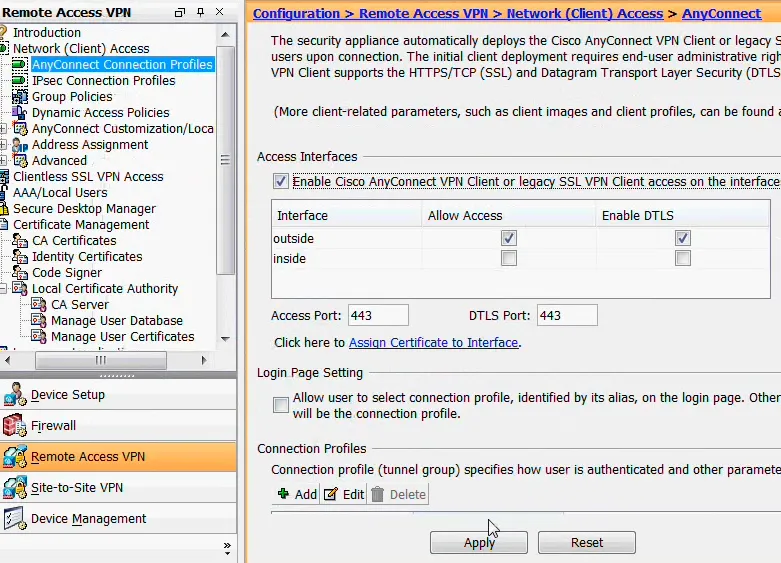

Enable Anyconnect

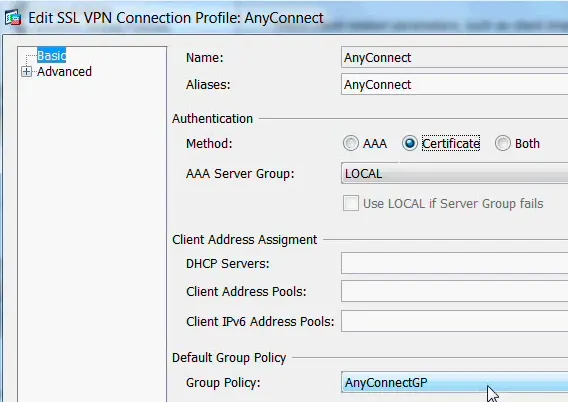

SSL VPN Connection Profile

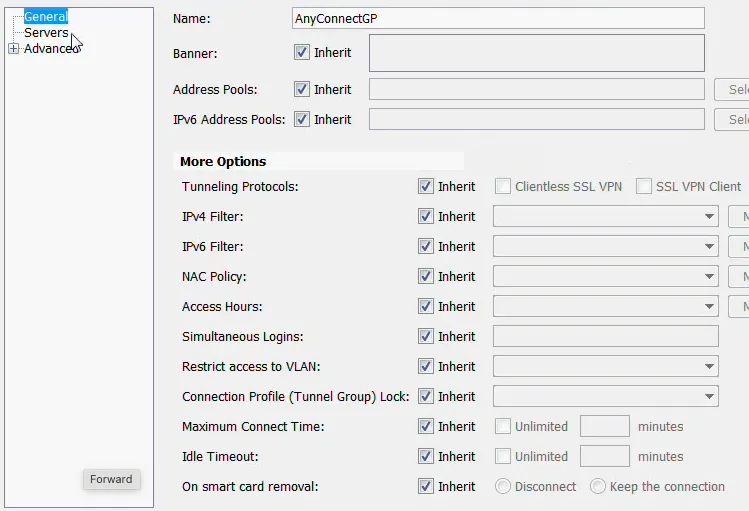

Group Policy

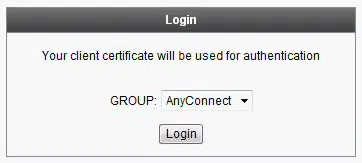

Client login using certificate

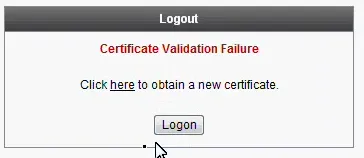

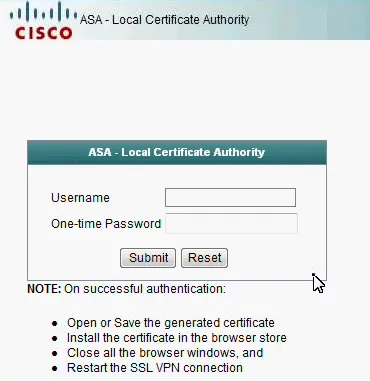

login will fail as the client does not currently have a certificate, can use the link to request a certificate using the OTP.

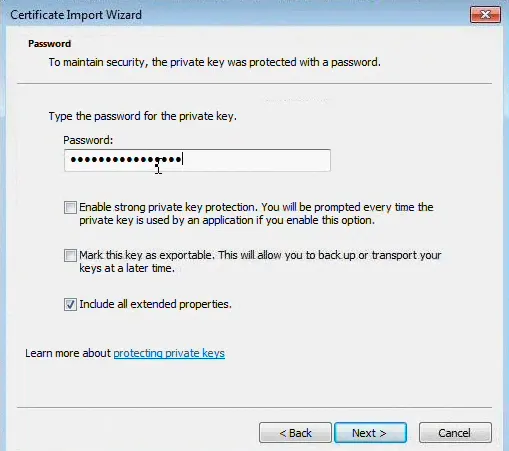

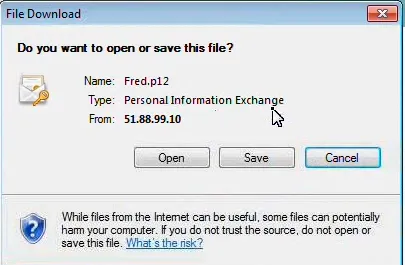

Use the OTP as the password for the private key when importing the certificate.
